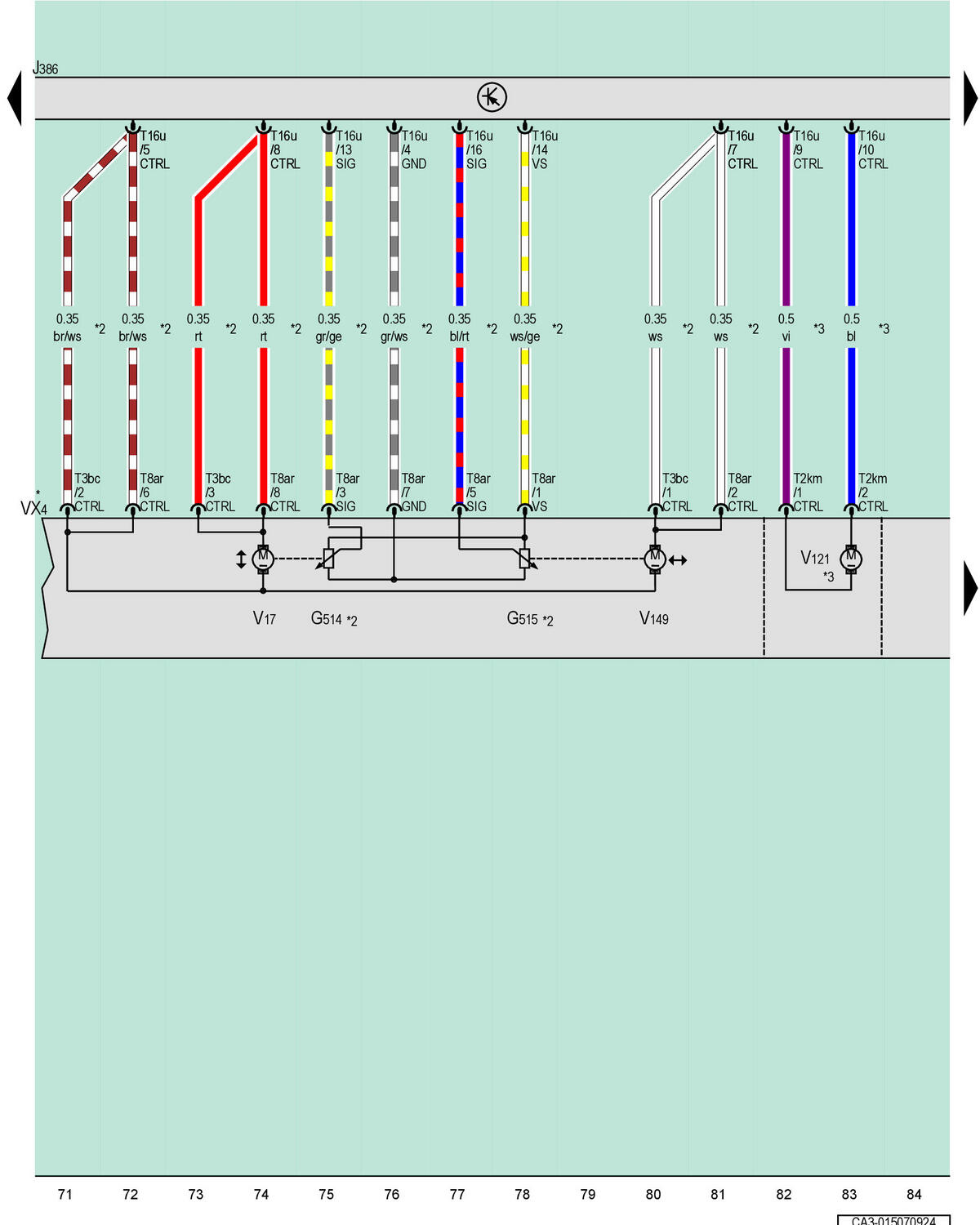

Driver Door Control Module, Driver Exterior Rearview Mirror

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G514

Driver Exterior Rearview Mirror Horizontal Position Sensor

G515

Driver Exterior Rearview Mirror Vertical Position Sensor

J386

Driver Door Control Module

T2km

2-Pin Connector, Black

T3bc

3-Pin Connector, Black

T8ar

8-Pin Connector, Black

T16u

16-Pin Connector, Black

VX4

Driver Exterior Rearview Mirror

V17

Driver Mirror Adjustment Motor 2

V121

Driver Exterior Rearview Mirror Folding Motor

V149

Driver Mirror Adjustment Motor

*

Pre-Wired Component

*2

Depending on Equipment

*3

For Vehicles with Folding Mirrors
