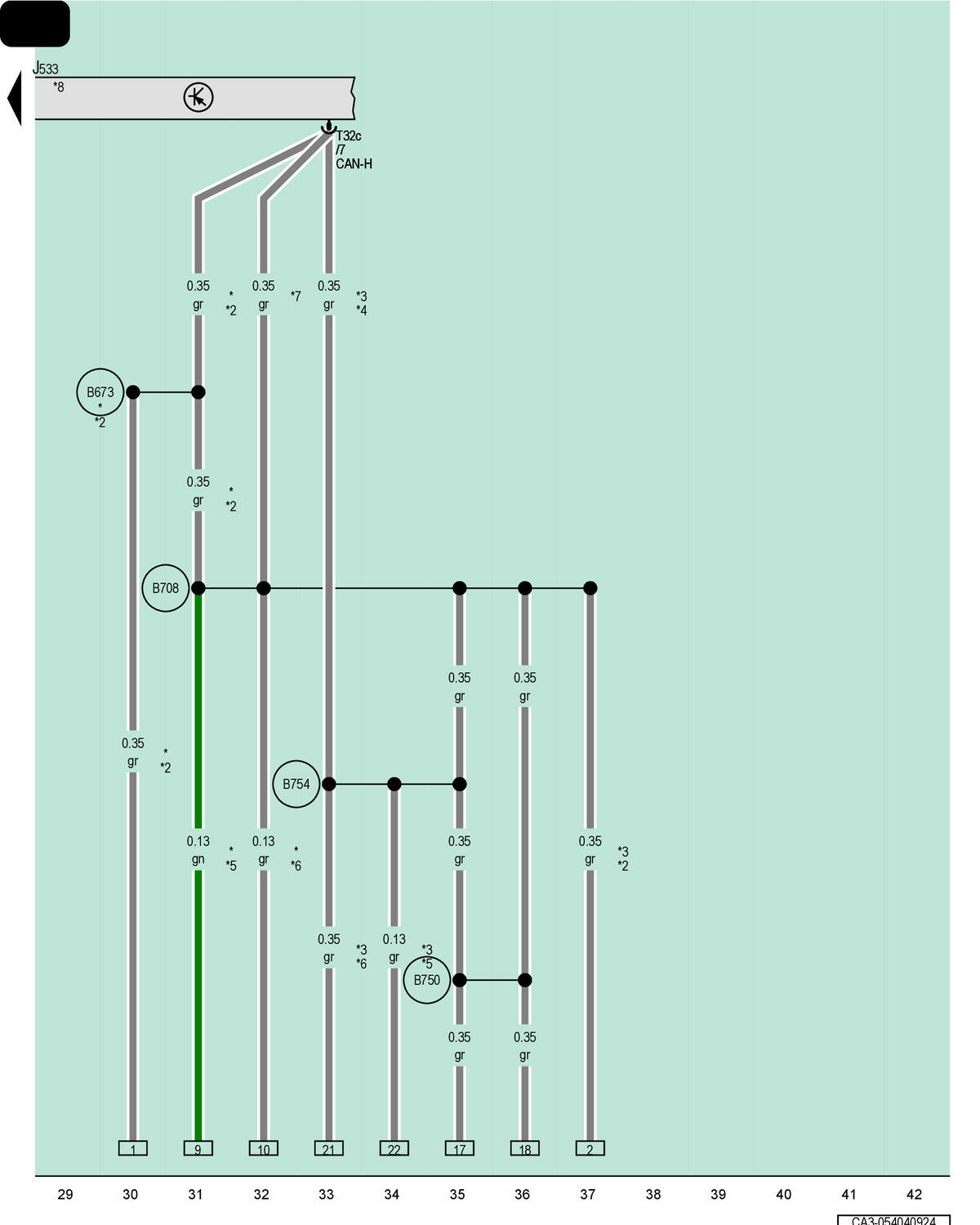

Data Bus On Board Diagnostic Interface
J533
Data Bus on Board Diagnostic Interface
T32c
32-Pin Connector, Black
B673
Suspension/Instrument Cluster CAN Bus High Connection 2 (in Main Wiring Harness)
B708
Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B750
CAN Bus High Display and Control Connection 1
B754
CAN Bus High Display and Control Connection 3
*
For Vehicles with Rearview Camera System
*2
For Vehicles with Lane Change Assistance
*3
For Vehicles with Peripheral Camera
*4
For Vehicles Without Lane Change Assistance
*5
Omitted as a Running Change
*6
Running Change
*7
Depending on Equipment
*8
Refer to Applicable Wiring Diagram for Data Bus Networking
