Overview - Front Axle Speed Sensor

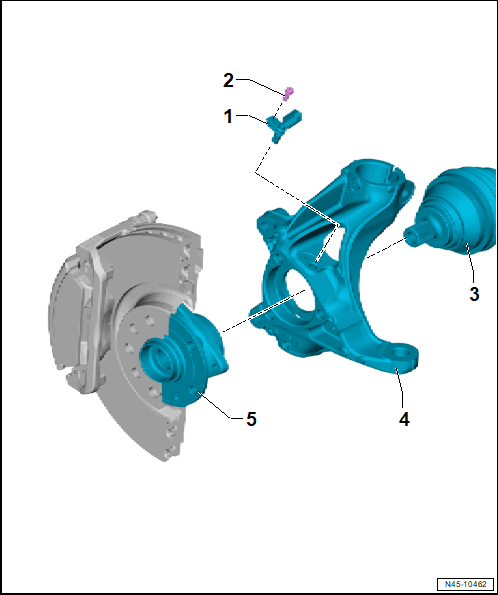

Fig 1: Exploded View Of Front Axle Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Front ABS Wheel Speed Sensor - G45- / Left Front ABS Wheel Speed Sensor -G47-
- Removing and Installing. Refer to RIGHT AND LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Drive Axle
- Overview. Refer to OVERVIEW - DRIVE AXLE .
- Removing and Installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
Wheel Bearing Housing
- Removing and Installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
Wheel Hub with Wheel Bearing Unit
- The ABS sensor ring is integrated in the wheel bearing unit
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
