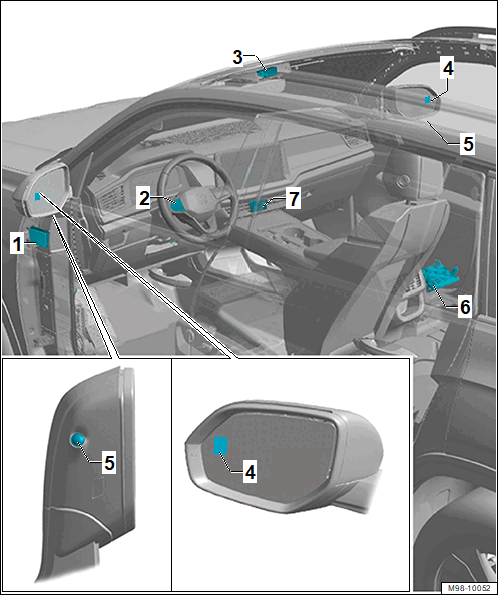

Component Location Overview - Sensors And Control Modules In Center Section Of Vehicle
- Parking Aid Control Module -J446-
- Depending on the vehicle equipment with:
- Parallel Parking Assistance Control Module -J791-
- With Parking Aid Speaker -R169- via infotainment system
- With Rear Parking Aid Speaker -R194- via infotainment system
- At the fuse panel
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to PARKING AID / PARALLEL PARKING ASSISTANCE CONTROL MODULE, REMOVING AND INSTALLING .
- Adaptive Cruise Control Button
- Adaptive Cruise Control (ACC). Refer to ADAPTIVE CRUISE CONTROL (ACC) .
- Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
- Driver Assistance Systems Front Camera -R242-
- Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA .
- Removing and Installing. Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING .
- Calibrating. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Lane Change Assistance Warning Lamp in Right Exterior Rearview Mirror -K311- / Lane Change Assistance Warning Lamp in Left Exterior Rearview Mirror -K312-
- Left Peripheral Camera -R244- / Right Peripheral Camera -R245-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and Installing. Refer to Left/Right Peripheral Camera -R244- / -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Peripheral Camera Control Module -J928-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and Installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Parking Aid Button/Parallel Parking Assistance Button
- Parking aid/parallel parking assist/autonomous parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
