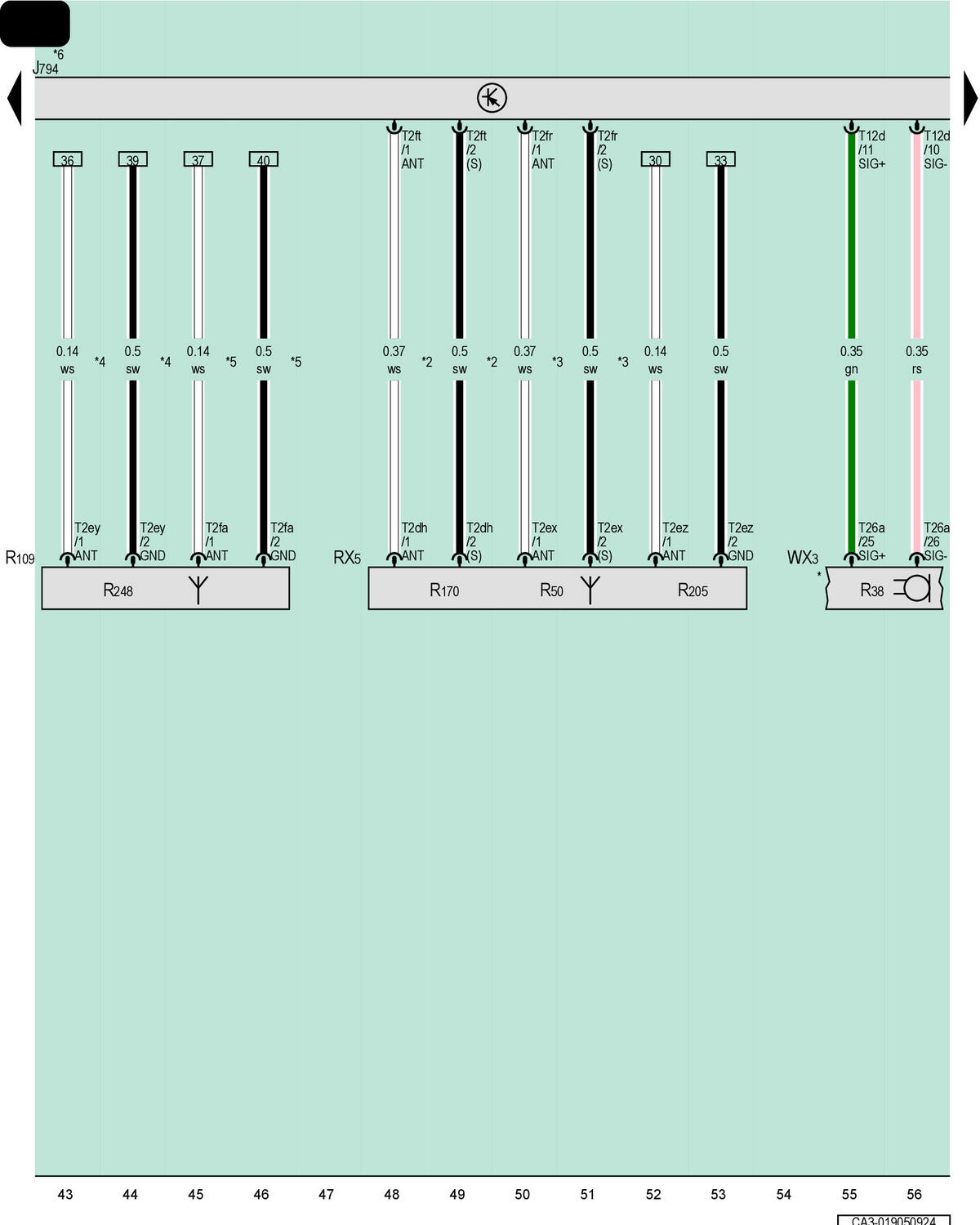

Information Electronics Control Module 1, Roof Antenna, Right Antenna Module, Front Roof Module
J794
Information Electronics Control Module 1
RX5
Roof Antenna
R38
Telephone Microphone
R50
GPS Antenna
R109
Right Antenna Module
R170
Satellite Antenna
R205
GSM Antenna
R248
Radio Antenna
T2dh
2-Pin Connector, Green
T2ex
2-Pin Connector, Blue
T2ey
2-Pin Connector, White
T2ez
2-Pin Connector, Purple
T2fa
2-Pin Connector, Light Green
T2fr
2-Pin Connector, Blue
T2ft
2-Pin Connector, Brown
T12d
12-Pin Connector, Blue
T26a
26-Pin Connector, Black
WX3
Front Roof Module
*
Refer to Applicable Wiring Diagram for Interior Lamps
*2
For Vehicles with Satellite Radio
*3
For Vehicles with Navigation System
*4
For Vehicles Without Digital Radio
*5
For Vehicles with Digital Radio
*6
Refer to Applicable Sound System Wiring Diagram
*7
Refer to Applicable Wiring Diagram for USB Connection for Data Transfer
