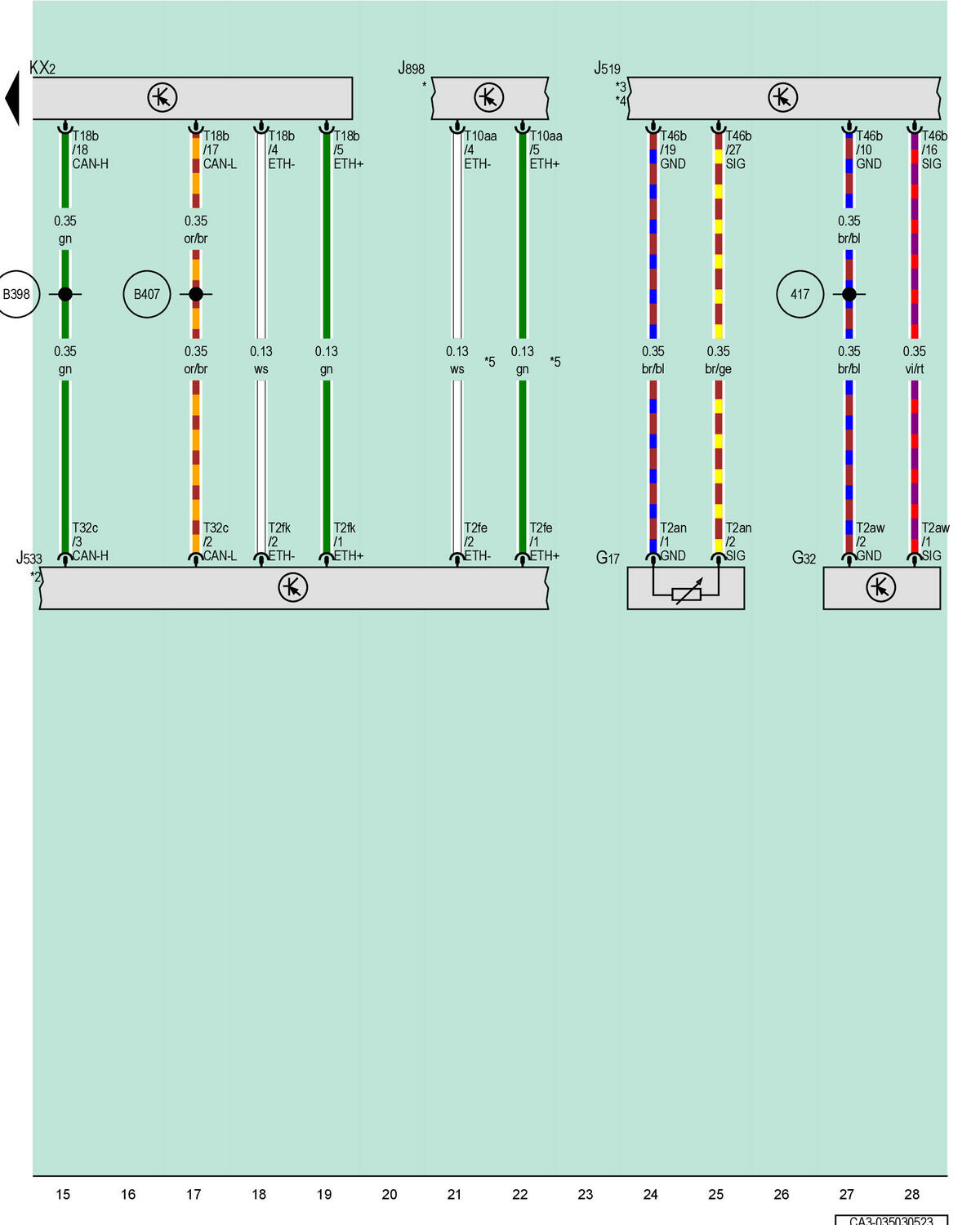

Outside Air Temperature Sensor, Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Windshield Projection Head Up Display Control Module, Instrument Cluster
G17
Outside Air Temperature Sensor
G32
Engine Coolant Level Sensor
J519
Vehicle Electrical System Control Module
J533
Data Bus on Board Diagnostic Interface
J898
Windshield Projection Head Up Display Control Module
KX2
Instrument Cluster
T2an
2-Pin Connector, Black
T2aw
2-Pin Connector, Black
T2fe
2-Pin Connector, White
T2fk
2-Pin Connector, White
T10aa
10-Pin Connector, Black
T18b
18-Pin Connector, Black
T32c
32-Pin Connector, Black
T46b
46-Pin Connector, Black
417
Ground Connection 9 (in Engine/Motor Compartment Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Windshield Projection Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*5
For Vehicles with Windshield Projection
