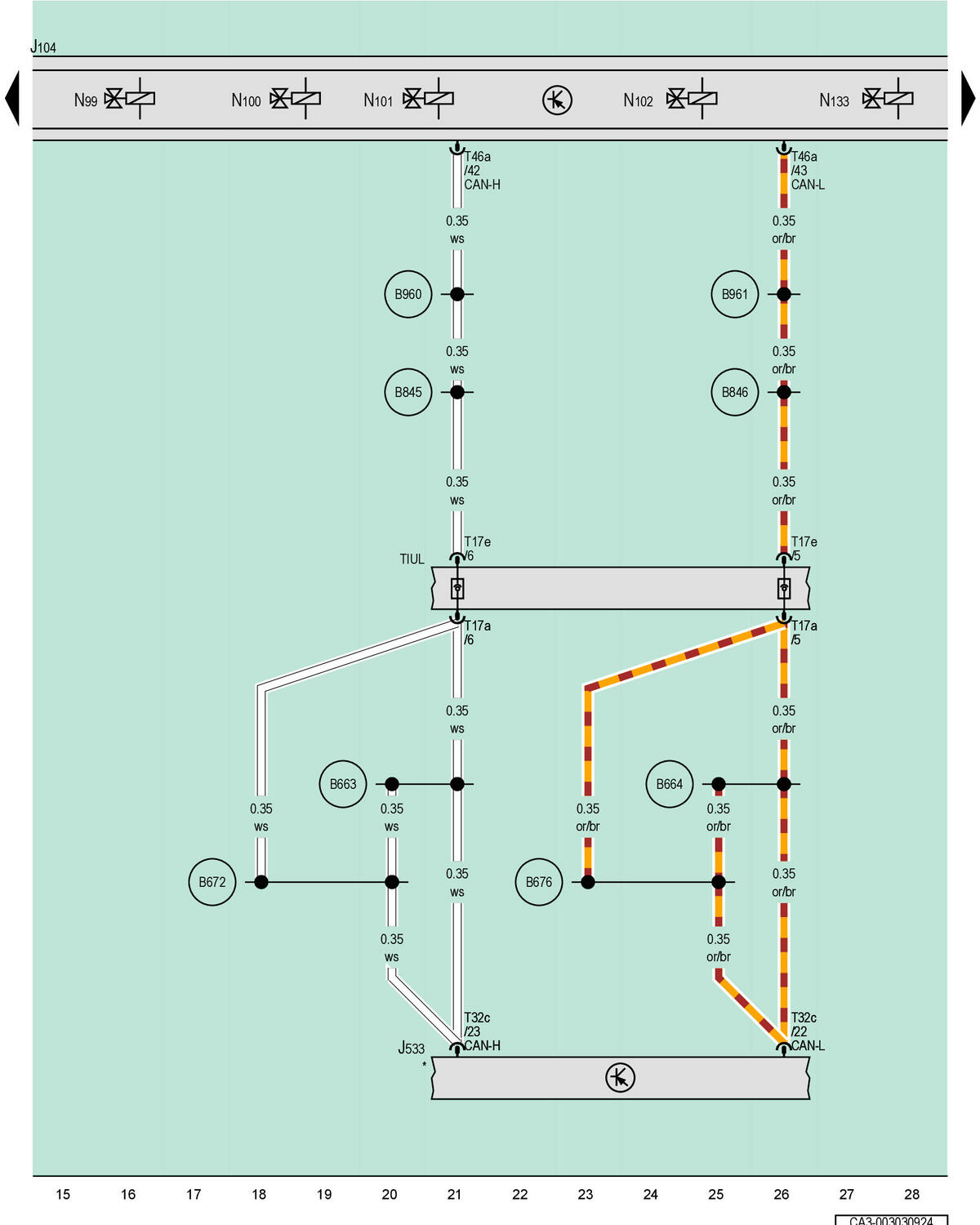

Abs Control Module, Data Bus On Board Diagnostic Interface
J104
ABS Control Module
J533
Data Bus on Board Diagnostic Interface
N99
Right Front ABS Inlet Valve
N100
Right Front ABS Outlet Valve
N101
Left Front ABS Inlet Valve
N102
Left Front ABS Outlet Valve
N133
Right Rear ABS Inlet Valve
T17a
17-Pin Connector, Black
T17e
17-Pin Connector, Black
T32c
32-Pin Connector, Black
T46a
46-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
B663
Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)
B664
Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)
B672
Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B676
Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
B845
CAN Bus Suspension High Connection 1 (in Engine/Motor Compartment Wiring Harness)
B846
CAN Bus Suspension Low Connection 1 (in Engine/Motor Compartment Wiring Harness)
B960
Connection 1 (CAN Bus Suspension, High)
B961
Connection 1 (CAN Bus Suspension, Low)
*
Refer to Applicable Wiring Diagram for Data Bus Networking
