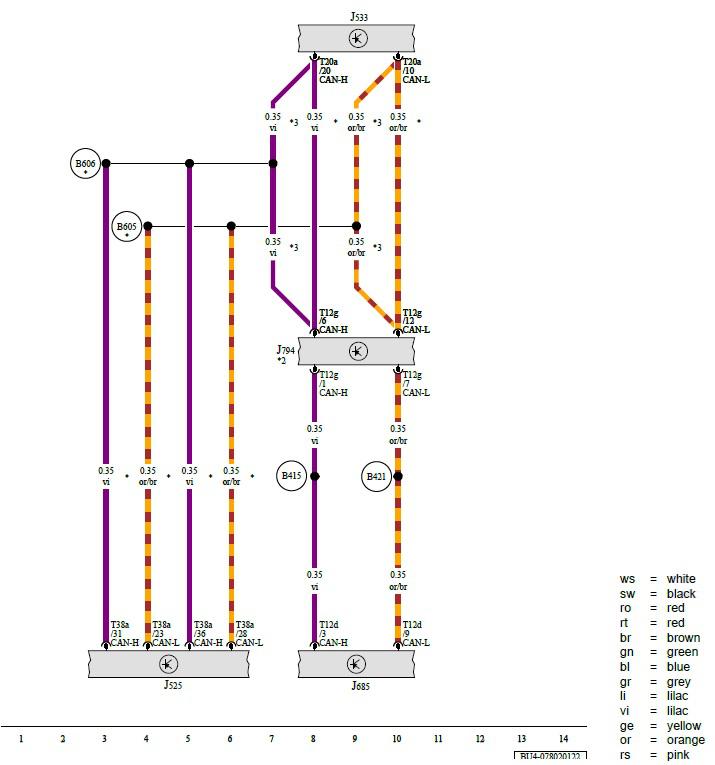

Digital Sound System Control Module, Data Bus on Board Diagnostic Interface, Front Information Display Control Head, Information Electronics Control Module 1
J525 - Digital Sound System Control Module
J533 - Data Bus on Board Diagnostic Interface
J685 - Front Information Display Control Head
J794 - Information Electronics Control Module 1
T12d - 12-Pin Connector, Black
T12g - 12-Pin Connector, Gray
T20a - 20-Pin Connector, Black
T38a - 38-Pin Connector, Black
B415 - Infotainment CAN Bus High Connection 1 (in Main Wiring Harness)
B421 - Infotainment CAN Bus Low Connection 1 (in Main Wiring Harness)
B605 - Connection 1 (in Interior Wiring Harness)
B606 - Connection 2 (in Interior Wiring Harness)
* - Depending on Equipment
*2 - Refer to the Applicable Multimedia System Wiring Diagram
*3 - For Vehicles with 6 Speakers
