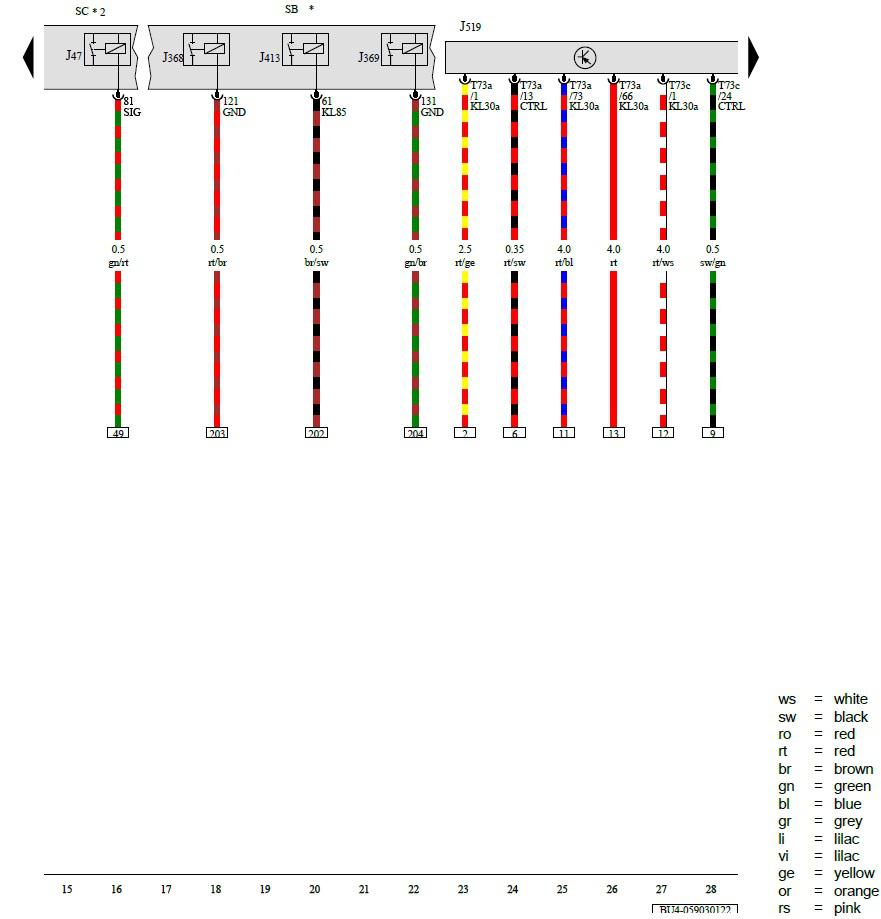

Vehicle Electrical System Control Module, Fuse Panel B, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J47 -  Windshield Defogger Relay

J368 -  Wiper Motor Relay 1

J369 -  Wiper Motor Relay 2

J413 -  Horn Relay

J519 -  Vehicle Electrical System Control Module

SB -  Fuse Panel B

SC -  Fuse Panel C

T73a -  73-Pin Connector, Black

T73c -  73-Pin Connector, Black

* -  Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2 -  Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
