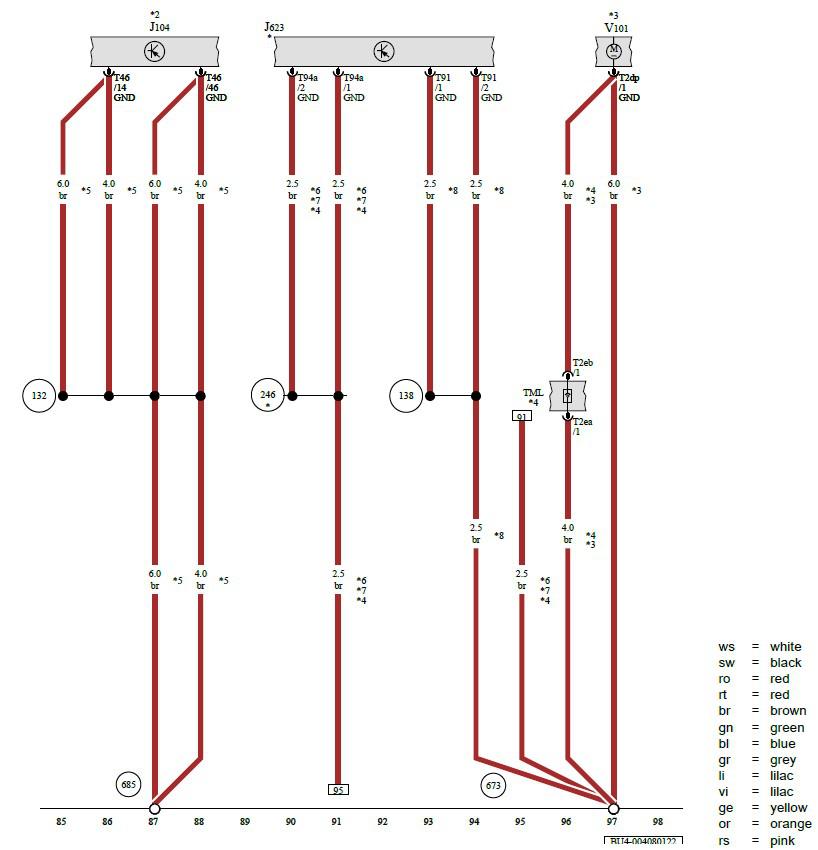

ABS Control Module, Engine/Motor Control Module, Secondary Air Injection Pump Motor
J104 ABS Control Module
J623 Engine/Motor Control Module
T2dp 2-Pin Connector, Black
T2ea 2-Pin Connector. Black
T2eb 2-Pin Connector. Black
T46 46-Pin Connector, Black
T91 91-Pin Connector, Black
T94a 94-Pin Connector, Black
TML Coupling Point in Engine/Motor Compartment, Left
V101 Secondary Air Injection Pump Motor
132 Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)
138 Control Module Ground Connection (in Motronic Multiform Fuel Injection Wiring Harness)
246 Control Module Ground Connection (in Engine Wiring Harness)
673 Ground Connection 3 on Left Front Longitudinal Member
685 Ground Connection 1 on Right Front Longitudinal Member
* Refer to Applicable Engine Wiring Diagram
*2 Refer to Applicable Brake System Wiring Diagram
*3 For Vehicles with Secondary Air Injection Pump
*4 For Vehicles with 1.5L Gasoline Engine
*5 Depending on Equipment
*6 For Vehicles with a 1.4L Engine
*7 For Vehicles with a 1.6L Engine
*8 For Vehicles with 2.0L Gasoline Engine
