Transmission, Transporting

Special tools and workshop equipment required

• Transmission Support Jig: 3336A  with Conversion Kit 3336A/1: 3336A/1

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

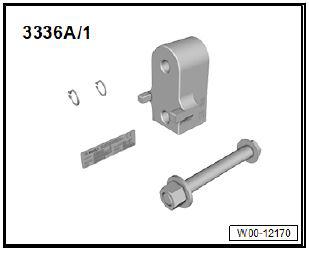

• Conversion Kit: 3336A/1

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Shop Crane: VAS6100
  Fig 1: Identifying Shop Crane

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

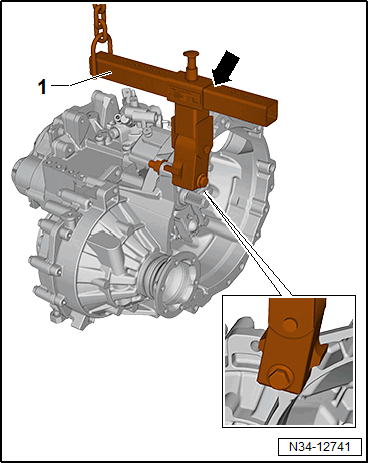

-- Install the -1- Transmission Support Jig: 3336A  with the Conversion Kit: 3336A/1  to the clutch housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification: 25 Nm

-- Move the support arm on the sliding bar using the locking bolt.

Number of visible holes -arrow- = 5.

-- Lift up the transmission using the shop crane and the Transmission Support Jig: 3336  with the Conversion Kit: 3336A/1  .

-- Set the transmission down, for example, into the transport container.
