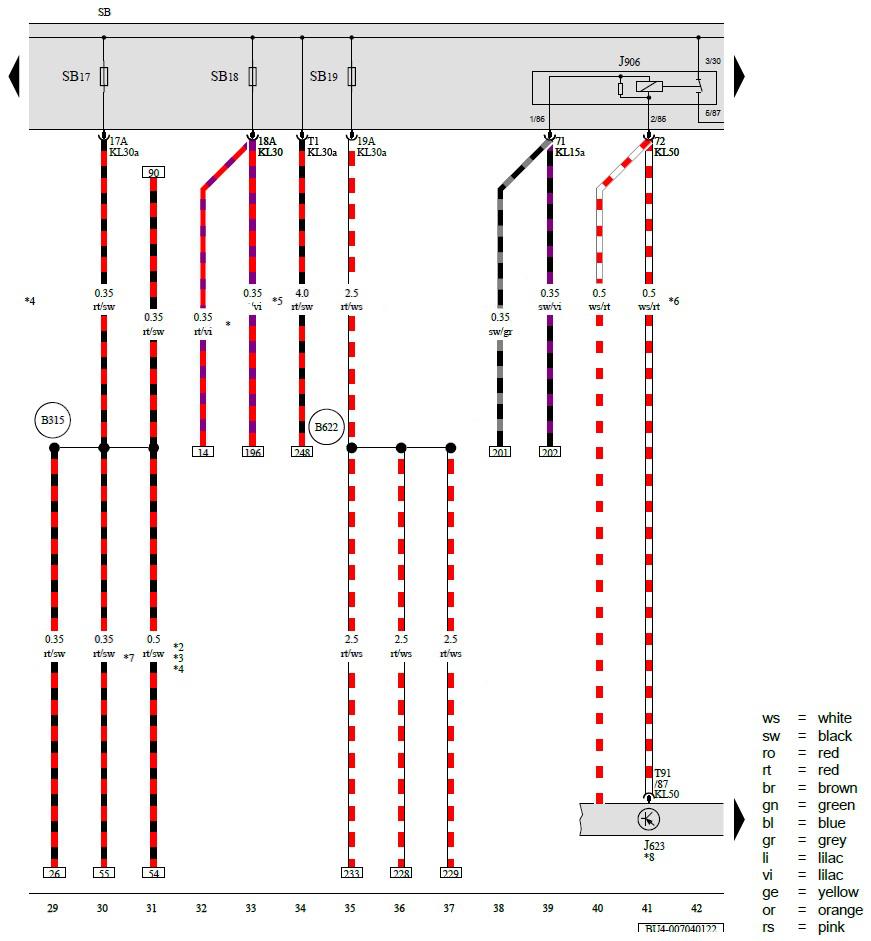

Engine/Motor Control Module, Fuse Panel B
J623 Engine/Motor Control Module
J906 Starter Relay 1
SB Fuse Panel B
SB17 Fuse 17 (On Fuse Panel B)
SB18 Fuse 18 (On Fuse Panel B)
SB19 Fuse 19 (On Fuse Panel B)
T91 91-Pin Connector, Black
T94a 94-Pin Connector, Black
B315 Positive Connection 1 (30a) (in Main Wiring Harness)
B622 Windshield Wiper Connection (in Main Wiring Harness)
* For Vehicles with a Parking Heater
*2 For Vehicles with a 1.6L Engine
*3 For Vehicles with a 1.4L Engine
*4 For Vehicles with 1.5L Gasoline Engine
*5 For Vehicles Without Parking Heater
*6 For Vehicles with 2.0L Gasoline Engine
*7 For Vehicles with a 2.0L Engine
*8 Refer to Applicable Engine Wiring Diagram

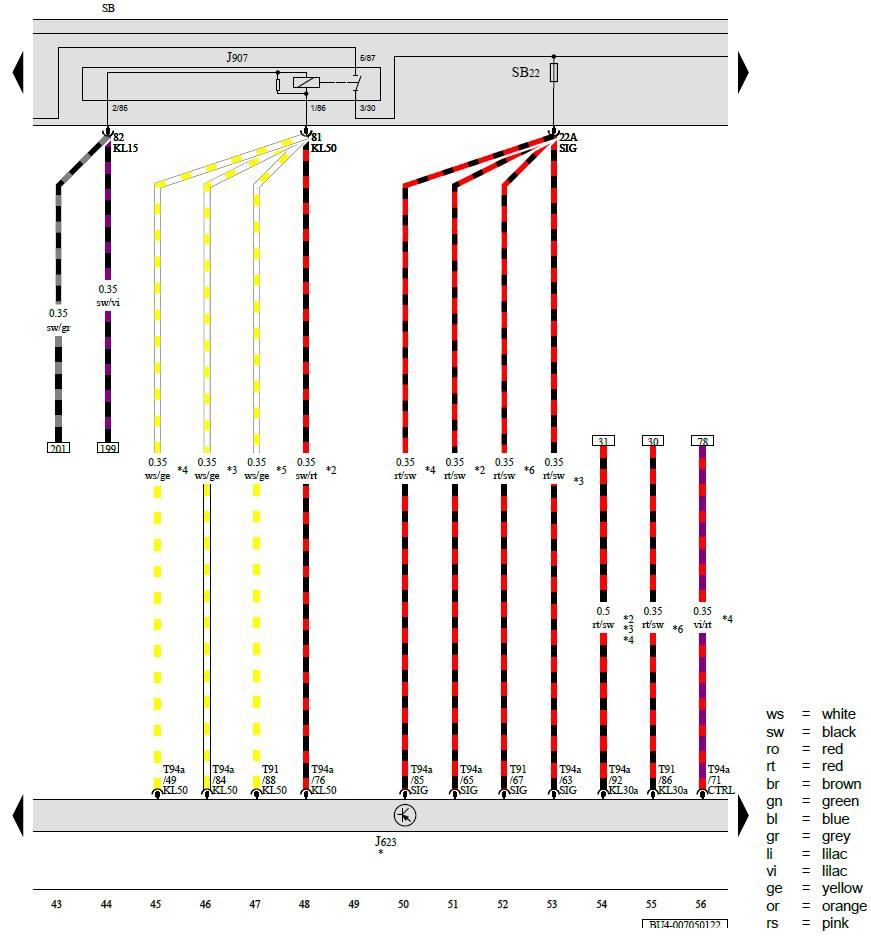

J623 Engine/Motor Control Module
J907 Starter Relay 2
SB Fuse Panel B
T91 91-Pin Connector, Black
T94a 94-Pin Connector, Black
* Refer to Applicable Engine Wiring Diagram
*2 For Vehicles with a 1.6L Engine
*3 For Vehicles with a 1.4L Engine
*4 For Vehicles with 1.5L Gasoline Engine
*5 For Vehicles with 2.0L Gasoline Engine
*6 For Vehicles with a 2.0L Engine
