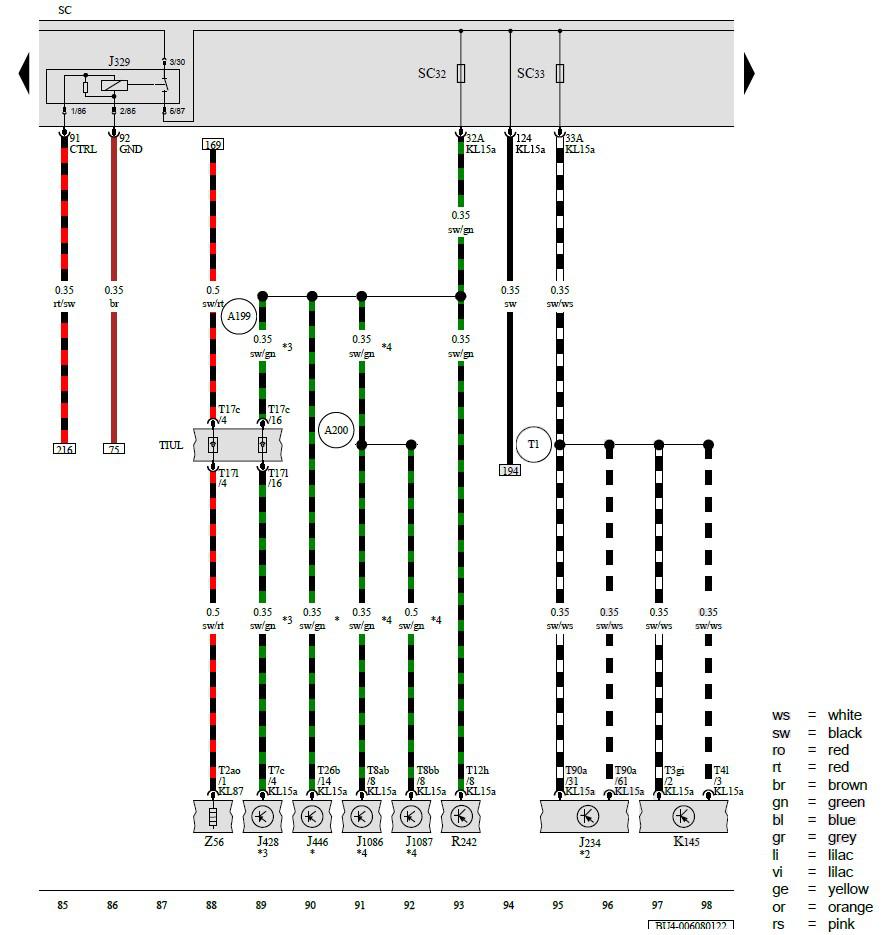

Airbag Control Module, Control Module for Adaptive Cruise Control, Parking Aid Control Module, Blind Spot Detection Control Module, Blind Spot Detection Control Module 2, Front Passenger Airbag -Disabled- Indicator Lamp, Driver Assistance Systems Front Camera, Fuse Panel C, Wiper Park Position Heater
J234 Airbag Control Module
J329 Terminal 15 Power Supply Relay
J428 Control Module for Adaptive Cruise Control
J446 Parking Aid Control Module
J1086 Blind Spot Detection Control Module
J1087 Blind Spot Detection Control Module 2
K145 Front Passenger Airbag -Disabled- Indicator Lamp
R242 Driver Assistance Systems Front Camera
SC Fuse Panel C
SC32 Fuse 32 (On Fuse Panel C)
SC33 Fuse 33 (On Fuse Panel C)
T2ao 2-Pin Connector, Black
T3gi 3-Pin Connector, Black
T4l 4-Pin Connector, Black
T7c 7-Pin Connector, Black
T8ab 8-Pin Connector, Black
T8bb 8-Pin Connector, Black
T12h 12-Pin Connector, Brown
T17c 17-Pin Connector, Red
T17l 17-Pin Connector, Red
T26b 26-Pin Connector, Black
T90a 90-Pin Connector, Yellow
TIUL Coupling Point in Interior, Bottom Left
Z56 Wiper Park Position Heater
A199 Positive Connection 4 (15a) (in Instrument Panel Wiring Harness)
A200 Positive Connection 5 (15a) (in Instrument Panel Wiring Harness)
T1 Positive Connection 1 (in Airbag Wiring Harness)
* For Vehicles with Rear Parking Aid
*2 Refer to Applicable Airbag Wiring Diagram
*3 For Vehicles with Control Module for Adaptive Cruise Control
*4 For Vehicles with Blind Spot Detection
