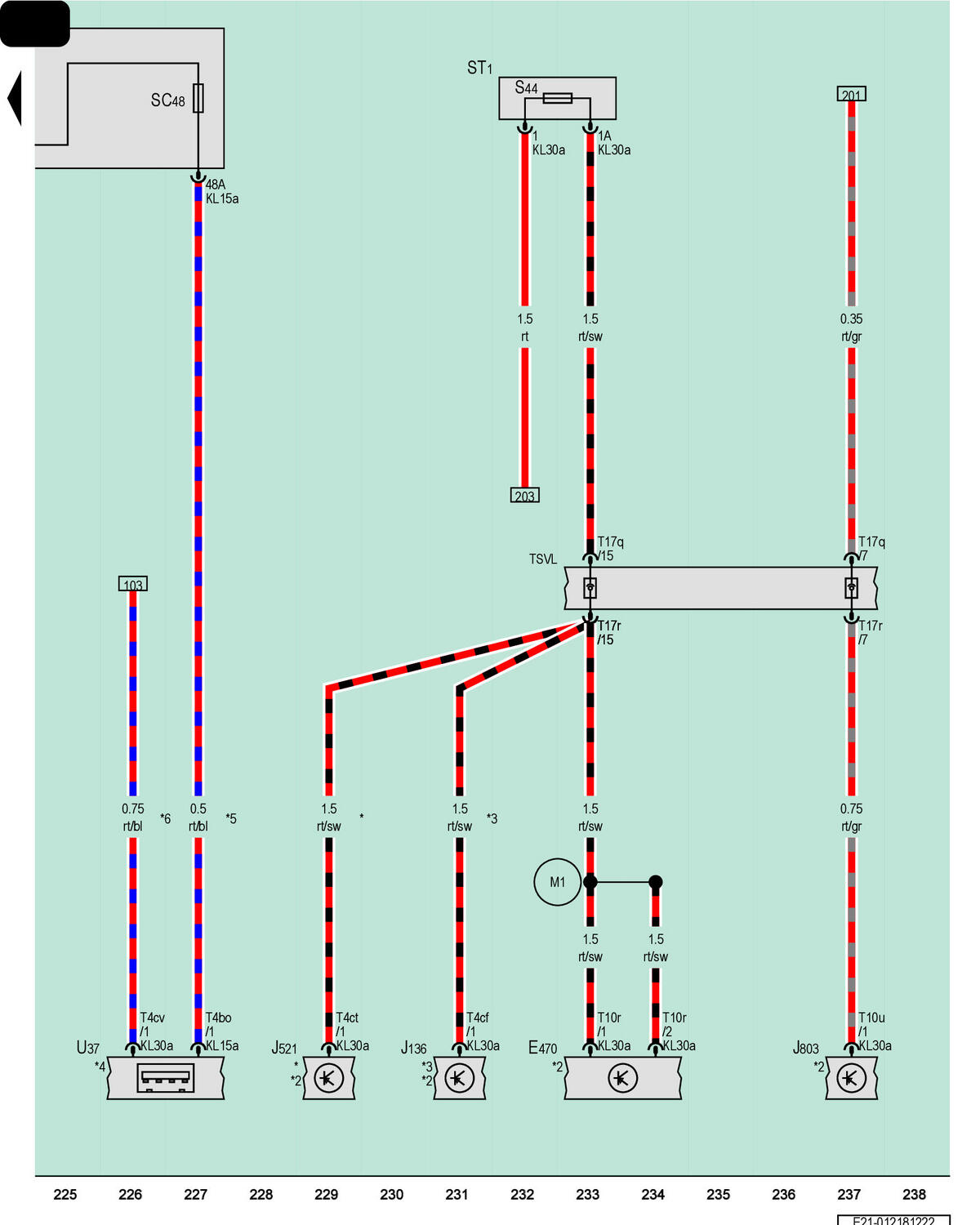

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module, Front Passenger Memory Seat Control Module, Left Front Massaging Seat Control Module, Fuse Panel C, Fuse Panel 1, USB Charging Socket 1
E470
Driver Seat Adjustment Control Head
J136
Memory Seat/Steering Column Adjustment Control Module
J521
Front Passenger Memory Seat Control Module
J803
Left Front Massaging Seat Control Module
S44
Driver Power Seat Adjustment Circuit Breaker 1
SC
Fuse Panel C
ST1
Fuse Panel 1
SC48
Fuse 48 (On Fuse Panel C)
T4bo
4-Pin Connector, Brown
T4cf
4-Pin Connector, Black
T4ct
4-Pin Connector, Black
T4cv
4-Pin Connector, Black
T10r
10-Pin Connector, Black
T10u
10-Pin Connector, Black
T17q
17-Pin Connector, Red
T17r
17-Pin Connector, Red
TSVL
Left Front Seat Coupling Station
U37
USB Charging Socket 1
M1
Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)
*
For RHD Vehicles
*2
Refer to Applicable Seat Adjustment Wiring Diagram
*3
For LHD Vehicles
*4
Refer to the Applicable USB Charging Socket Wiring Diagram
*5
Through June 2022
*6
From June 2022
