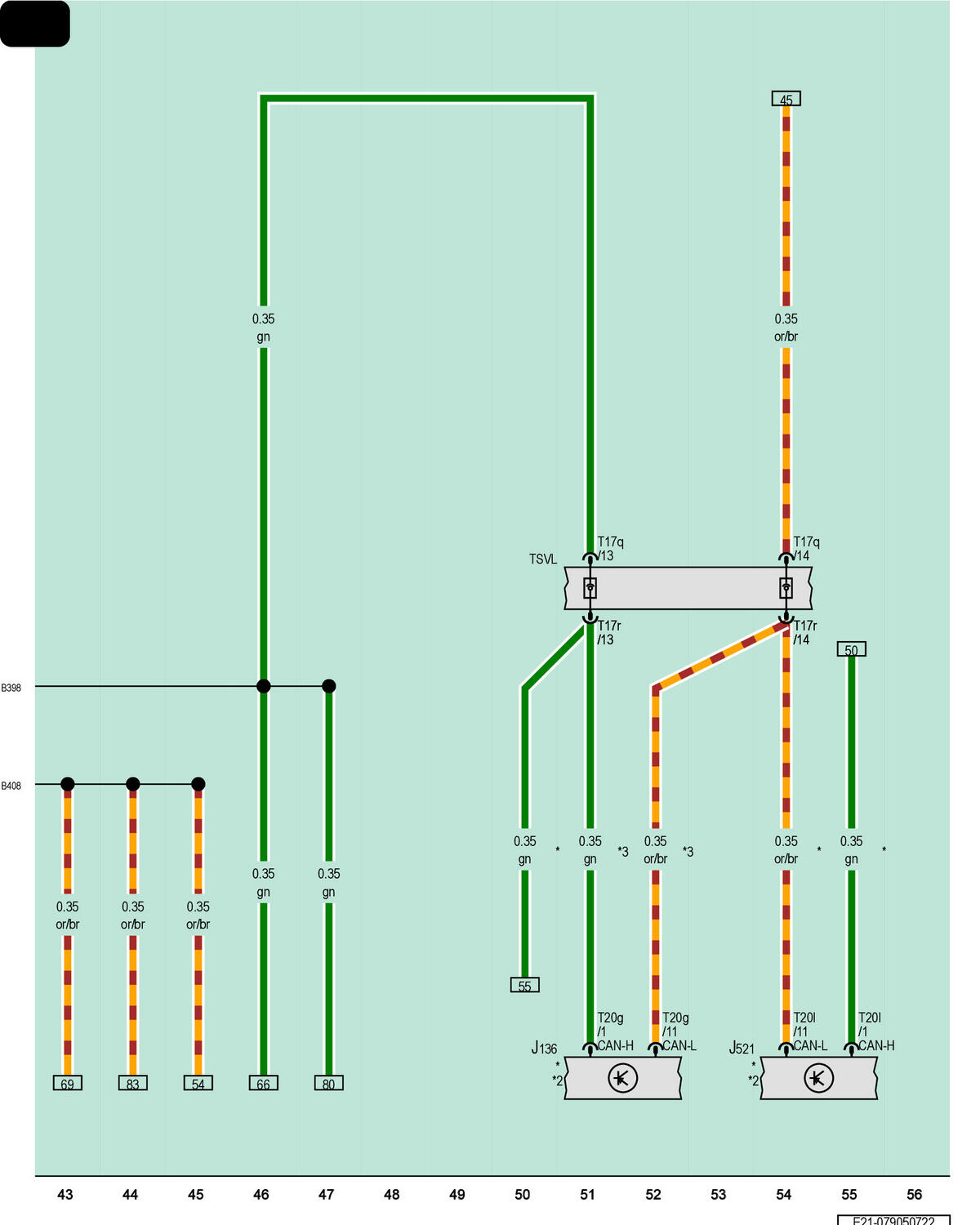

Memory Seat/Steering Column Adjustment Control Module, Front Passenger Memory Seat Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J136

Memory Seat/Steering Column Adjustment Control Module

J521

Front Passenger Memory Seat Control Module

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T20g

20-Pin Connector, Black

T20l

20-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

*

For RHD Vehicles

*2

Refer to Applicable Seat Adjustment Wiring Diagram

*3

For LHD Vehicles
