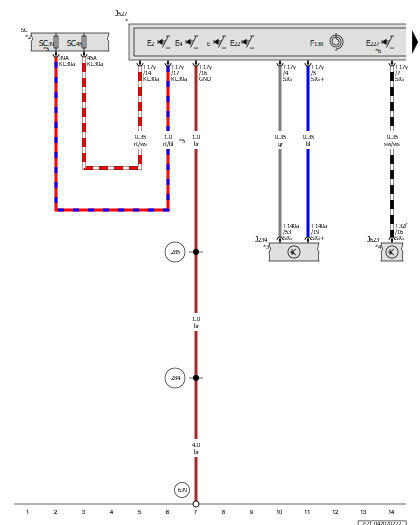

Airbag Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E

Windshield Wiper Switch

E2

Turn Signal Switch

E4

Headlamp Dimmer/Flasher Switch

E22

Windshield Wiper Intermittent Mode Switch

E227

Cruise Control -Set- Button

F138

Airbag Spiral Spring/Return Spring with Slip Ring

J234

Airbag Control Module

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

SC

Fuse Panel C

SC39

Fuse 39 (On Fuse Panel C)

SC45

Fuse 45 (On Fuse Panel C)

T17y

17-Pin Connector, Yellow

T32f

32-Pin Connector, Gray

T140a

140-Pin Connector, Yellow

284

Ground Connection 6 (in Interior Wiring Harness)

285

Ground Connection 7 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

*

Refer to Applicable Wiring Diagram for Multifunction Steering Wheel

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Refer to Applicable Airbag Wiring Diagram

*4

Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram

*5

For Vehicles with Heated Steering Wheel

*6

For Vehicles with Cruise Control System Without Multifunction Steering Wheel
