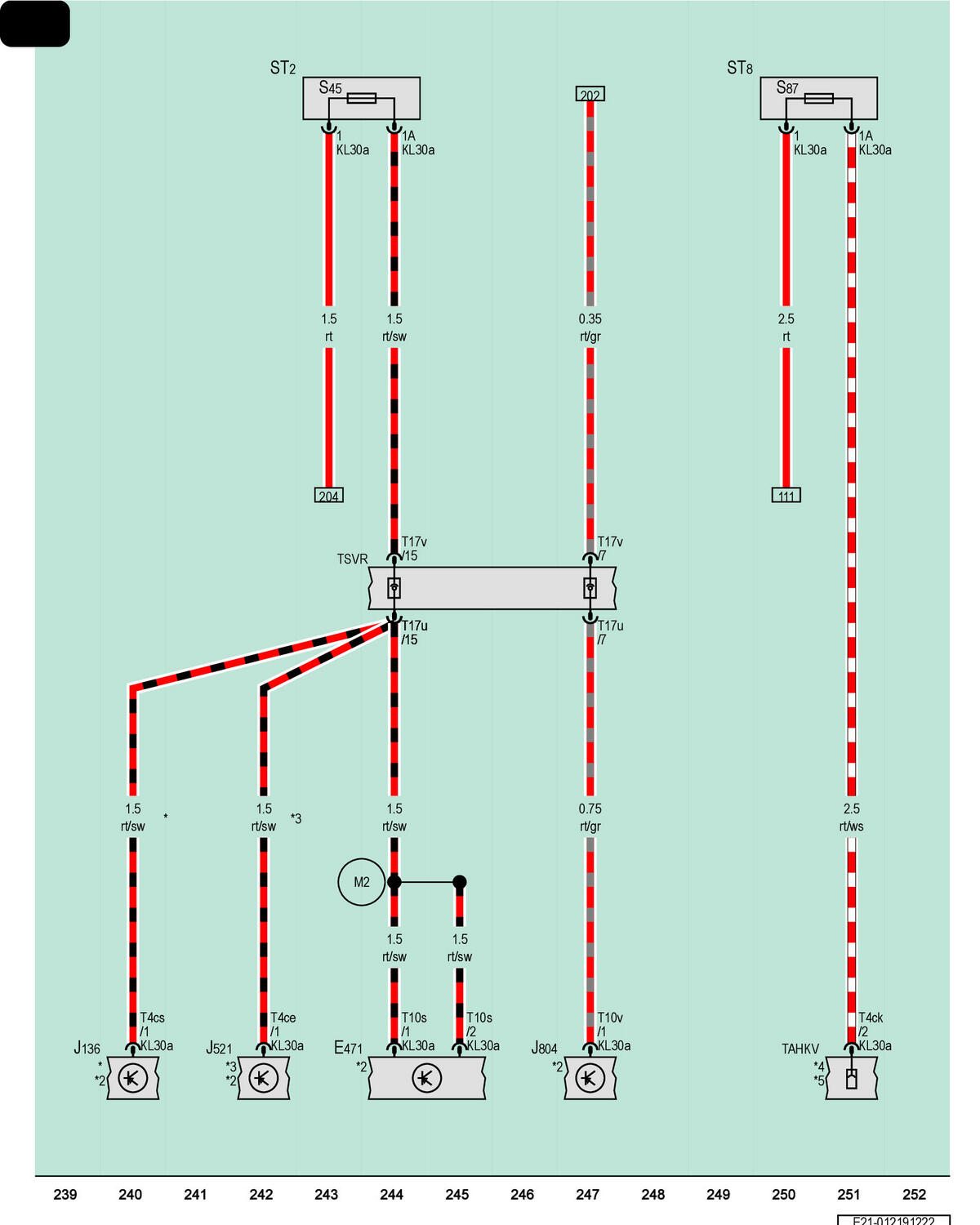

Front Passenger Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module, Front Passenger Memory Seat Control Module, Right Front Massaging Seat Control Module, Fuse Panel 2, Fuse Panel 8, Electric Trailer Brake Coupling Point

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E471

Front Passenger Seat Adjustment Control Head

J136

Memory Seat/Steering Column Adjustment Control Module

J521

Front Passenger Memory Seat Control Module

J804

Right Front Massaging Seat Control Module

ST2

Fuse Panel 2

ST8

Fuse Panel 8

S45

Driver Power Seat Adjustment Circuit Breaker 2

S87

Trailer Circuit Breaker

T4ce

4-Pin Connector, Black

T4ck

4-Pin Connector, Black

T4cs

4-Pin Connector, Black

T10s

10-Pin Connector, Black

T10v

10-Pin Connector, Black

T17u

17-Pin Connector, Red

T17v

17-Pin Connector, Red

TAHKV

Electric Trailer Brake Coupling Point

TSVR

Right Front Seat Coupling Station

M2

Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)

*

For RHD Vehicles

*2

Refer to Applicable Seat Adjustment Wiring Diagram

*3

For LHD Vehicles

*4

Refer to the Wiring Diagram for Trailer Towing

*5

For USA Only
