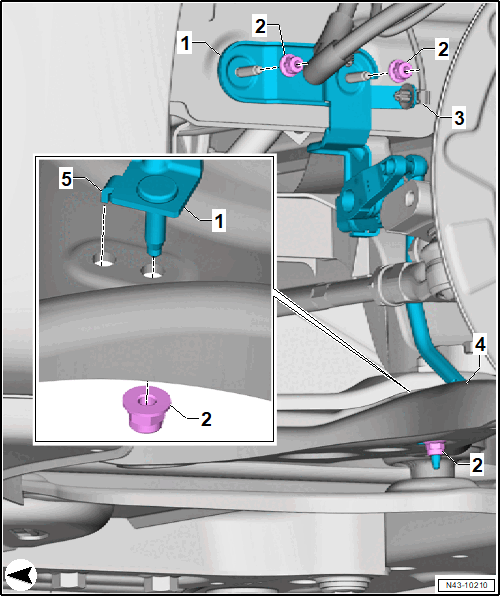

Overview - Front Level Control System Sensor

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Front Level Control System Sensor -G78-, Right Front Level Control Sensor -G289-
   • Refer to appropriate Service Information .
2. Nut
   • Quantity: 2
   • 8 Nm
3. Cable Holder
4. Control Arm
   • Refer to Overview - Control Arm and Ball Joint .
   • Refer to Control Arm, Removing and Installing .
5. Guide
