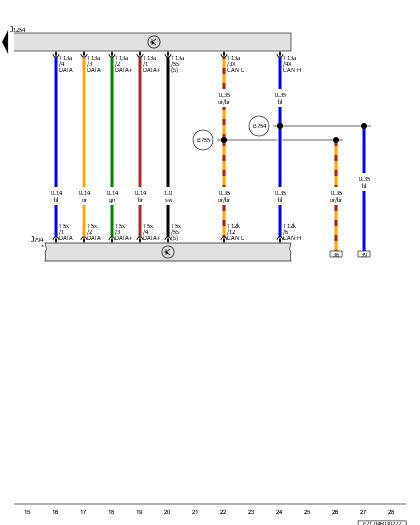

Information Electronics Control Module 1, Driver Information System Control Module With Display Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

J1254

Driver Information System Control Module with Display Unit

T5x

5-Pin Connector, Gray

T12k

12-Pin Connector, Gray

T13a

13-Pin Connector, Naturally Cloudy

B754

CAN Bus High Display and Control Connection 3

B755

CAN Bus Low Display and Control Connection 3

*

Refer to the Applicable Multimedia System Wiring Diagram
