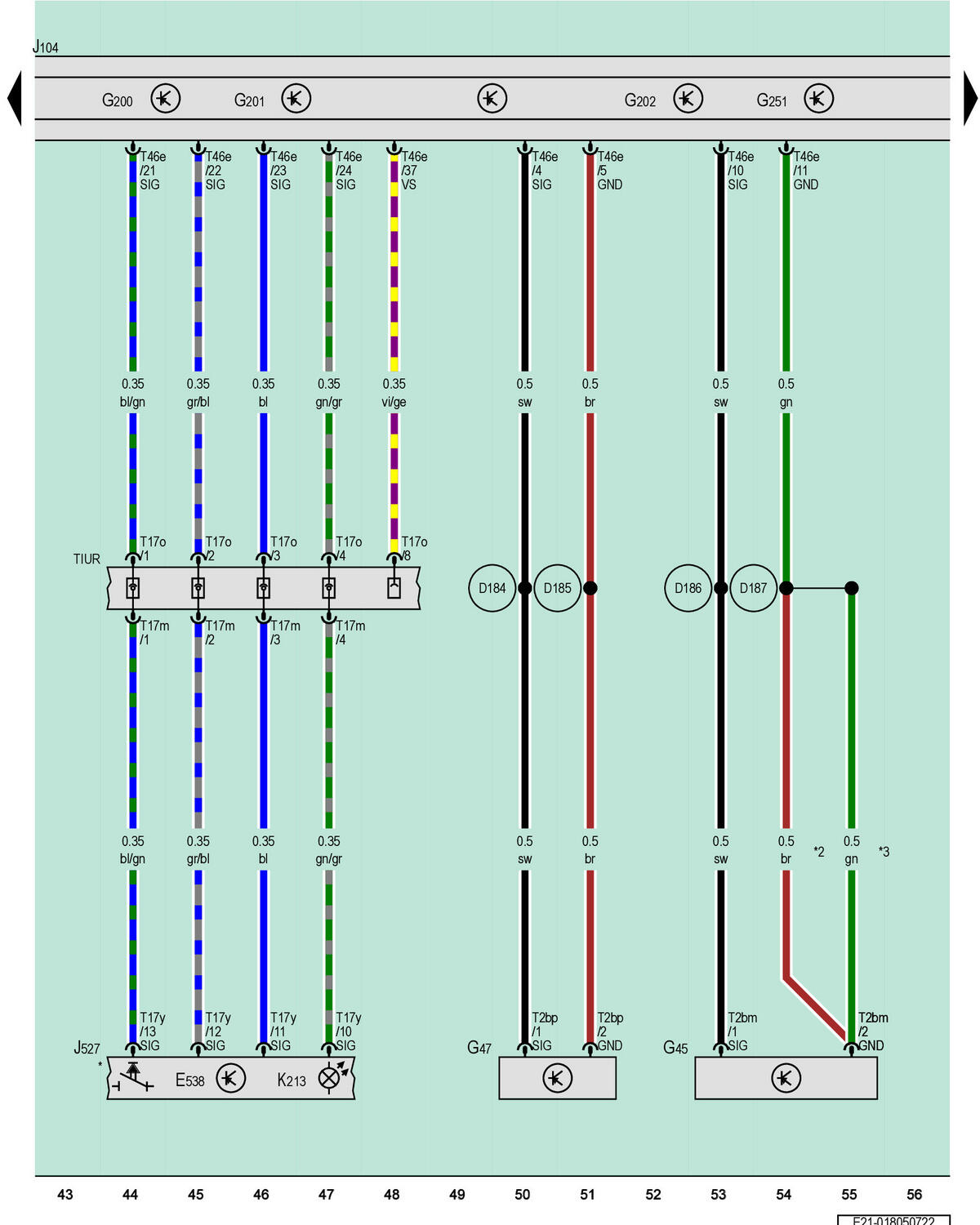

Right Front Abs Wheel Speed Sensor, Left Front Abs Wheel Speed Sensor, Abs Control Module, Steering Column Electronics Control Module
E538
Electromechanical Parking Brake Button
G45
Right Front ABS Wheel Speed Sensor
G47
Left Front ABS Wheel Speed Sensor
G200
Transverse Acceleration Sensor
G201
Brake Pressure Sensor 1
G202
Rotation Rate Sensor
G251
Longitudinal Acceleration Sensor
J104
ABS Control Module
J527
Steering Column Electronics Control Module
K213
Electromechanical Parking Brake Indicator Lamp
T2bm
2-Pin Connector, Black
T2bp
2-Pin Connector, Black
T17m
17-Pin Connector, Black
T17o
17-Pin Connector, Black
T17y
17-Pin Connector, Yellow
T46e
46-Pin Connector, Black
TIUR
Coupling Point in Interior, Bottom Right
D184
Left Front Speed Sensor Positive Connection (in Engine/Motor Compartment Wiring Harness)
D185
Left Front Speed Sensor Negative Connection (in Engine/Motor Compartment Wiring Harness)
D186
Right Front Speed Sensor Positive Connection (in Engine/Motor Compartment Wiring Harness)
D187
Right Front Speed Sensor Negative Connection (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Steering Column Electronics Wiring Diagram
*2
For Vehicles with Adaptive Chassis
*3
For Vehicles Without Adaptive Chassis
