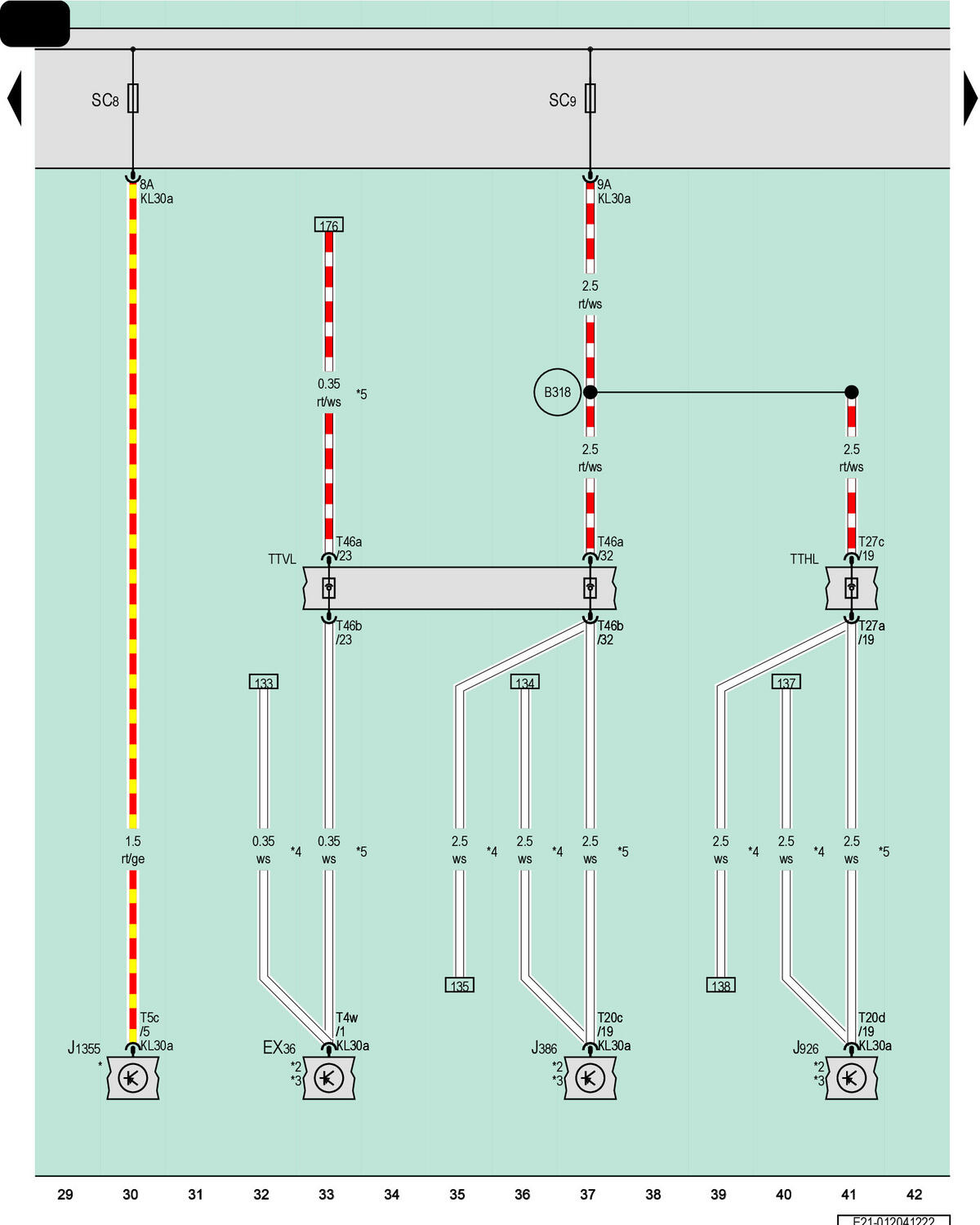

Power Window Control Head In Driver Door, Driver Door Control Module, Driver Side Rear Door Control Module, Roof System Control Module, Fuse Panel C
EX36
Power Window Control Head in Driver Door
J386
Driver Door Control Module
J926
Driver Side Rear Door Control Module
J1355
Roof System Control Module
SC
Fuse Panel C
SC8
Fuse 8 (On Fuse Panel C)
SC9
Fuse 9 (On Fuse Panel C)
T4w
4-Pin Connector, Red
T5c
5-Pin Connector, Black
T20c
20-Pin Connector, White
T20d
20-Pin Connector, White
T27a
27-Pin Connector, Black
T27c
27-Pin Connector, Black
T46a
46-Pin Connector, Black
T46b
46-Pin Connector, Black
TTHL
Left Rear Door Coupling Point
TTVL
Left Front Door Coupling Point
B318
Positive Connection 4 (30a) (in Main Wiring Harness)
*
Refer to the Applicable Sunroof Wiring Diagram
*2
Refer to Applicable Driver Door Control Module Wiring Diagram
*3
Refer to Applicable Front Passenger Door Control Module Wiring Diagram
*4
For RHD Vehicles
*5
For LHD Vehicles
