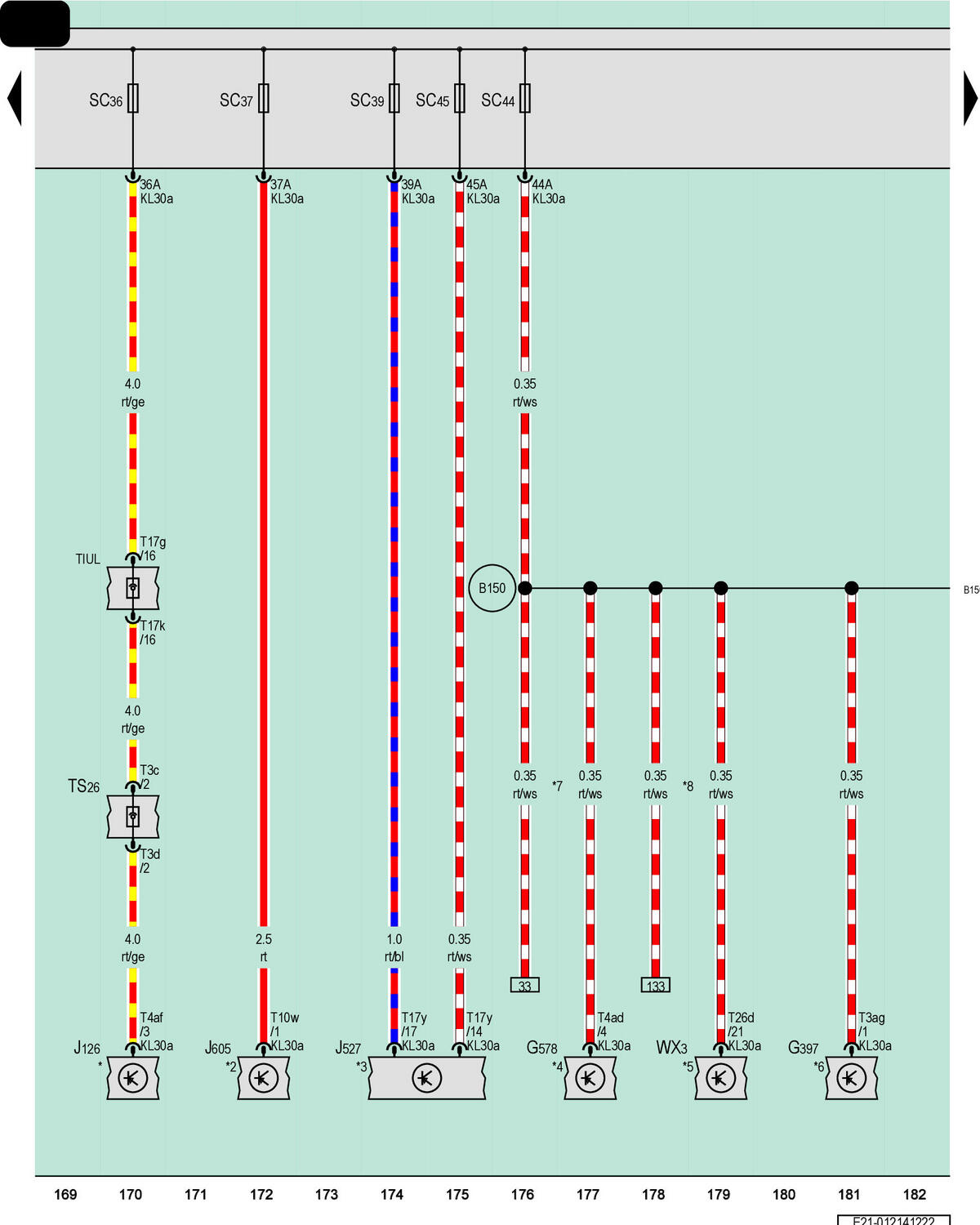

Rain/Light Recognition Sensor, Anti-Theft Alarm System Sensor, Fresh Air Blower Control Module, Steering Column Electronics Control Module, Rear Lid Control Module, Fuse Panel C, Front Roof Module
G397
Rain/Light Recognition Sensor
G578
Anti-Theft Alarm System Sensor
J126
Fresh Air Blower Control Module
J527
Steering Column Electronics Control Module
J605
Rear Lid Control Module
SC
Fuse Panel C
SC36
Fuse 36 (On Fuse Panel C)
SC37
Fuse 37 (On Fuse Panel C)
SC39
Fuse 39 (On Fuse Panel C)
SC44
Fuse 44 (On Fuse Panel C)
SC45
Fuse 45 (On Fuse Panel C)
T3ag
3-Pin Connector, Black
T3c
3-Pin Connector, Black
T3d
3-Pin Connector, Black
T4ad
4-Pin Connector, Black
T4af
4-Pin Connector, Black
T10w
10-Pin Connector, Black
T17g
17-Pin Connector, Red
T17k
17-Pin Connector, Red
T17y
17-Pin Connector, Yellow
T26d
26-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
TS26
Blower Coupling Point
WX3
Front Roof Module
B150
Positive Connection 2 (30a) (in Interior Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Refer to Applicable Power Rear Lid Wiring Diagram
*3
Refer to Applicable Steering Column Electronics Wiring Diagram
*4
Refer to the Applicable Anti-Theft Alarm System Wiring Diagram
*5
Refer to Applicable Wiring Diagram for Interior Lamps
*6
Refer to the Applicable Wiring Diagram for the Windshield Wiper/Washer System
*7
For LHD Vehicles
*8
For RHD Vehicles
