Steering Wheel Touch Recognition Control Module J1158, Removing And Installing: Removing

-- Remove the airbag unit with the driver airbag igniter -N95-. Refer to AIRBAG UNIT WITH DRIVER AIRBAG IGNITER N95, REMOVING AND INSTALLING .

-- Remove the lower decorative trim. Refer to appropriate Service Information .

-- Disconnect the connectors -1- and -3-.

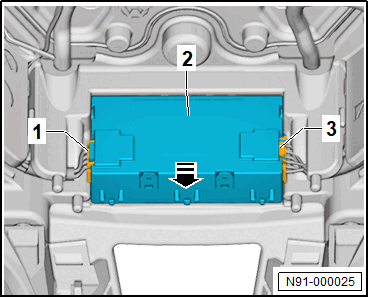

GWWN91-000025Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control module -2- in -direction of the arrow-.
