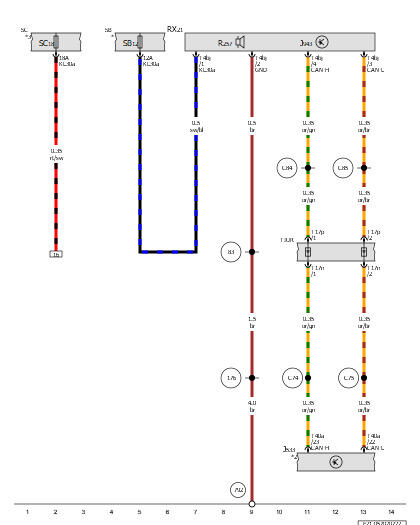

Data Bus On Board Diagnostic Interface, Engine Sound Generator Module 1, Fuse Panel B, Fuse Panel C
J533
Data Bus on Board Diagnostic Interface
J943
Engine Sound Generator Control Module
RX21
Engine Sound Generator Module 1
R257
Engine Sound Generator Actuator 1
SB
Fuse Panel B
SB12
Fuse 12 (On Fuse Panel B)
SC
Fuse Panel C
SC18
Fuse 18 (On Fuse Panel C)
T4bj
4-Pin Connector, Black
T17n
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
T40a
40-Pin Connector, Black
TIUR
Coupling Point in Interior, Bottom Right
83
Ground Connection 1 (in Right Front Wiring Harness)
176
Ground Connection (in Right Headlamp Wiring Harness)
792
Ground Connection in Right Front Wheel Housing
C74
Connection 1 (CAN Bus Variable Headlamps AFS, High) in Main Wiring Harness
C75
Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Main Wiring Harness
C84
Connection 1 (CAN Bus Variable Headlamps AFS, High) in Engine/Motor Compartment
C85
Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Engine/Motor Compartment
*
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
*2
Refer to the Applicable Convenience CAN Bus Network Data Bus Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
