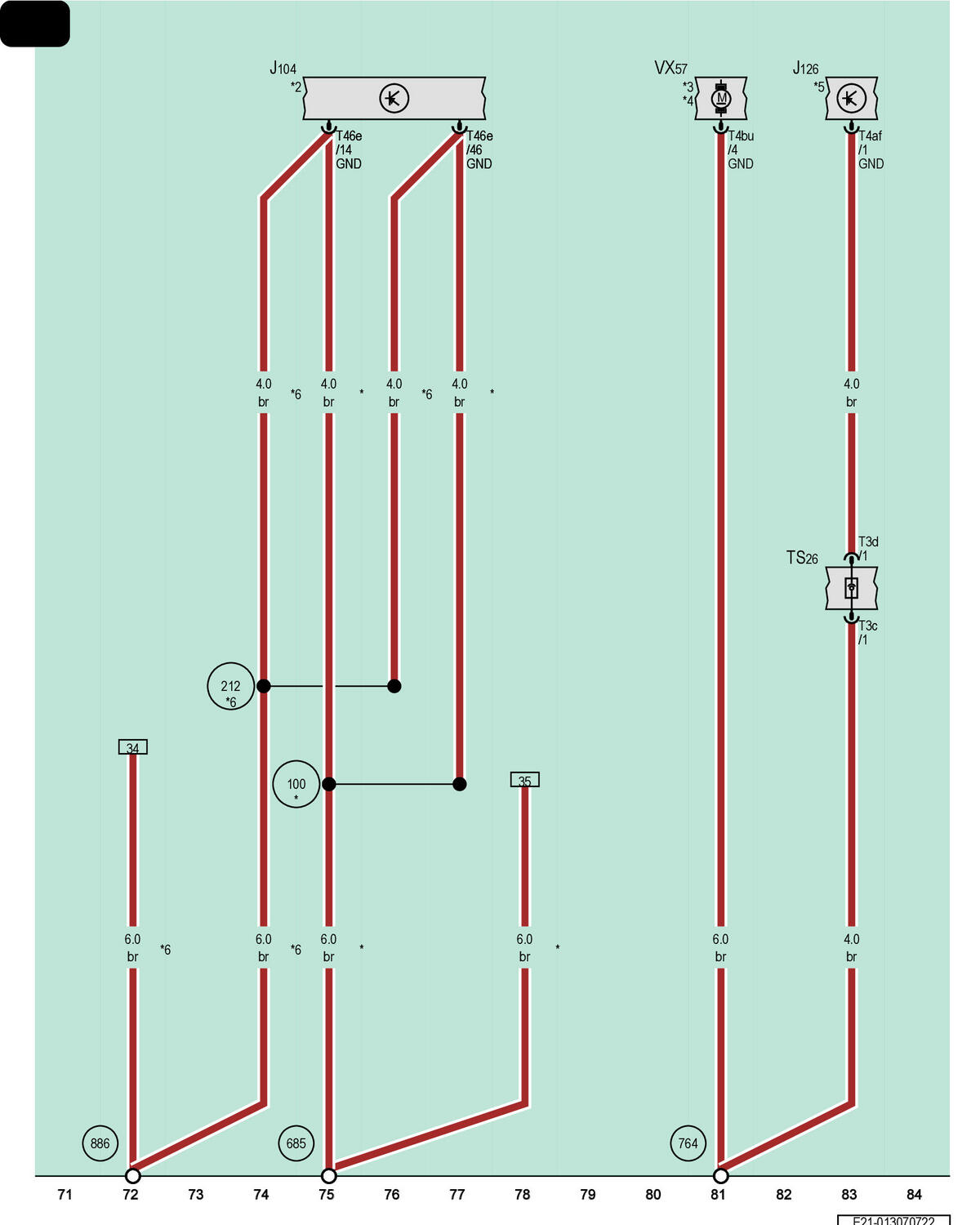

Abs Control Module, Fresh Air Blower Control Module, Radiator Fan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104

ABS Control Module

J126

Fresh Air Blower Control Module

T3c

3-Pin Connector, Black

T3d

3-Pin Connector, Black

T4af

4-Pin Connector, Black

T4bu

4-Pin Connector, Black

T46e

46-Pin Connector, Black

TS26

Blower Coupling Point

VX57

Radiator Fan

100

Ground Connection 1 (in ABS Wiring Harness)

212

Ground Connection 2 (in ABS Wiring Harness)

685

Ground Connection 1 on Right Front Longitudinal Member

764

Ground Connection Inside Left Front Wheel Housing

886

Ground Connection 6 on Left Front Longitudinal Member

*

For LHD Vehicles

*2

Refer to Applicable Brake System Wiring Diagram

*3

Pre-Wired Component

*4

Refer to Applicable Radiator Fan Wiring Diagram

*5

Refer to Applicable A/C System Wiring Diagram

*6

For RHD Vehicles
