Towing Recognition Control Module, Engine/Motor Control Module

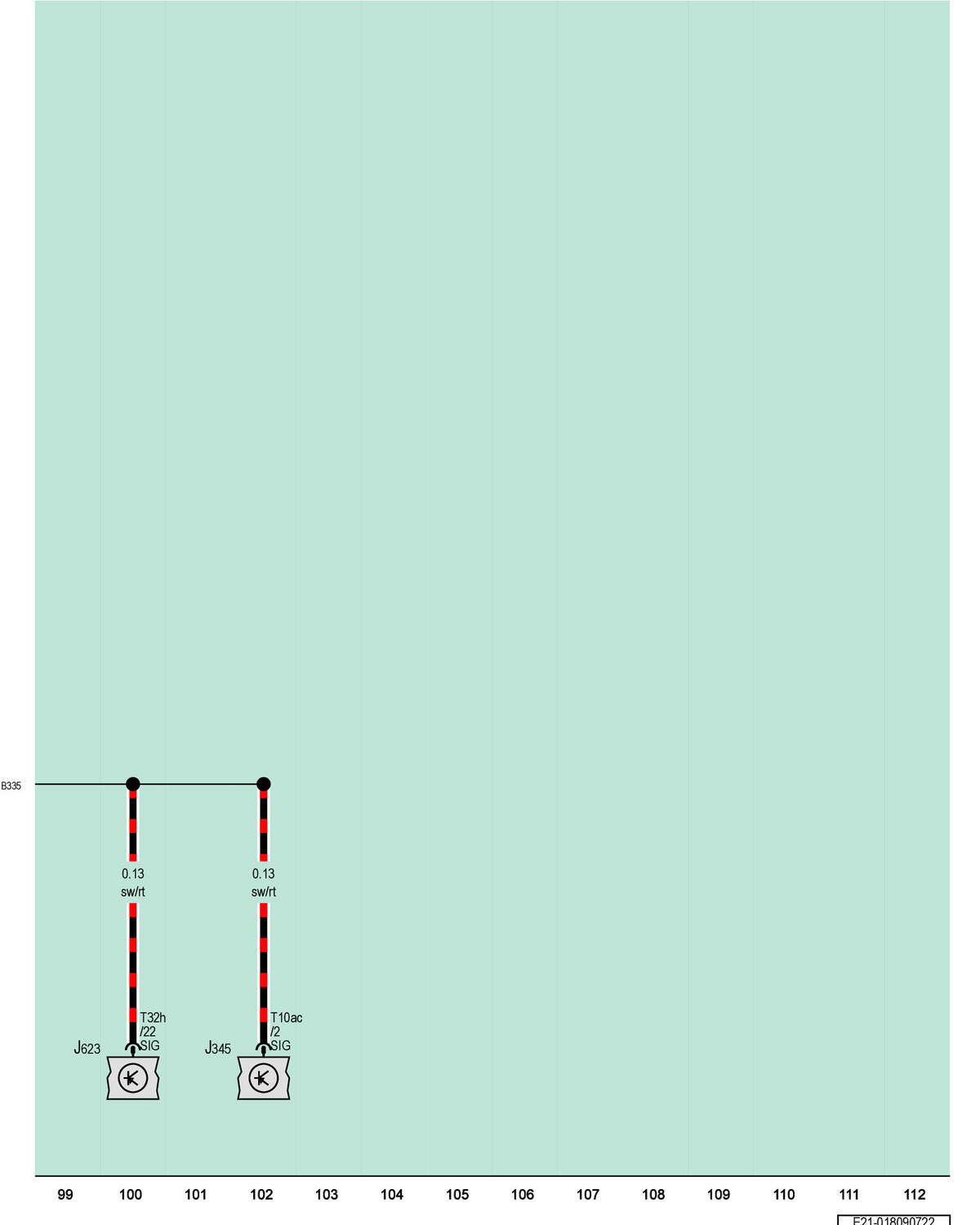

GWWE21-018090722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J345

Towing Recognition Control Module

J623

Engine/Motor Control Module

T10ac

10-Pin Connector, Black

T32h

32-Pin Connector, Blue

B335

Connection 54 (in Main Wiring Harness) 1
