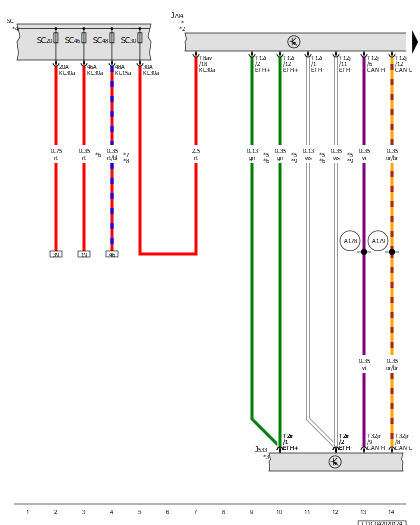

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

SC

Fuse Panel C

SC20

Fuse 20 (On Fuse Panel C)

SC30

Fuse 30 (On Fuse Panel C)

SC46

Fuse 46 (On Fuse Panel C)

SC48

Fuse 48 (On Fuse Panel C)

T2ir

2-Pin Connector, White

T8av

8-Pin Connector, Black

T12i

12-Pin Connector, Green

T12j

12-Pin Connector, Gray

T32jr

32-Pin Connector, Black

A178

Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)

A179

Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)

*

Refer to Applicable Sound System Wiring Diagram

*2

Refer to the Applicable USB Charging Socket Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Data Bus Networking

*4

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*5

The Color of the Wires Depends on Vehicle Equipment

*6

For Vehicles with Navigation System

*7

Through July 2022

*8

Not for Vehicles with USB Connection for Increased Charging Capacity

*9

For Vehicles Without a Navigation System
