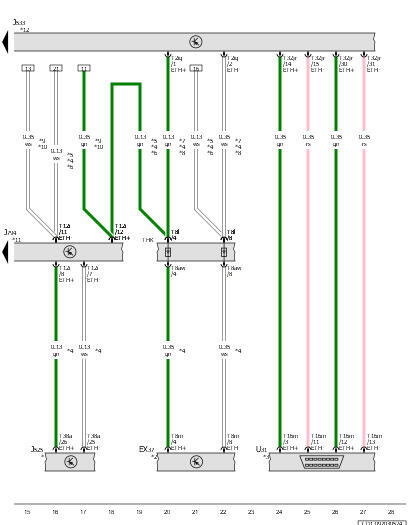

Rear Lid Handle, Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Diagnostic Connection
EX37
Rear Lid Handle
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
T2iq
2-Pin Connector, White
T8aw
8-Pin Connector, Black
T8l
8-Pin Connector, Black
T8m
8-Pin Connector, Black
T12i
12-Pin Connector, Green
T16m
16-Pin Connector, Black
T32jr
32-Pin Connector, Black
T38a
38-Pin Connector, Black
THK
Rear Lid Coupling Point
U31
Diagnostic Connection
*
Refer to Applicable Sound System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*3
Refer to Applicable Diagnostic Connector Wiring Diagram
*4
The Color of the Wires Depends on Vehicle Equipment
*5
For Vehicles Without Rearview Camera System
*6
For Vehicles with Medium Instrument Cluster
*7
For Vehicles with Rearview Camera System
*8
For Vehicles with Basic Instrument Cluster
*9
From November 2021
*10
For Vehicles Without a Navigation System
*11
Refer to the Applicable Multimedia System Wiring Diagram
*12
Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
