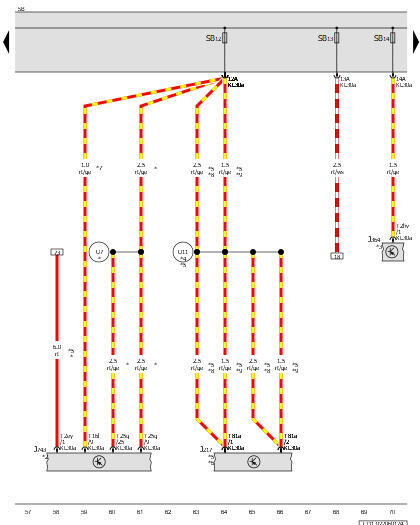

Transmission Control Module, Auxiliary Heater Control Module, Dual-Clutch Transmission MECHATRONIC, Fuse Panel B
J217
Transmission Control Module
J364
Auxiliary Heater Control Module
J743
Dual-Clutch Transmission Mechatronic
SB
Fuse Panel B
SB12
Fuse 12 (On Fuse Panel B)
SB13
Fuse 13 (On Fuse Panel B)
SB14
Fuse 14 (On Fuse Panel B)
T2ey
2-Pin Connector, Black
T2hv
2-Pin Connector, Black
T16l
16-Pin Connector, Black
T25q
25-Pin Connector, Black
T81a
81-Pin Connector, Black
U7
Connection 87 (in Automatic Transmission Wiring Harness)
U11
Connection 3 (in Automatic Transmission Wiring Harness)
*
For Vehicles with Automatic Transmission (DSG)
*2
Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)
*3
Refer to Applicable Wiring Diagram for Auxiliary Coolant Heater
*4
For Vehicles with Automatic Transmission
*5
From July 2020
*6
Refer to Applicable Wiring Diagram for Automatic Transmission
*7
For Vehicles with Automatic Transmission (DSG) 0CW
*8
For Vehicles with 6-Speed Automatic Transmission and Tiptronic
*9
For Vehicles with 8-Speed Automatic Transmission
