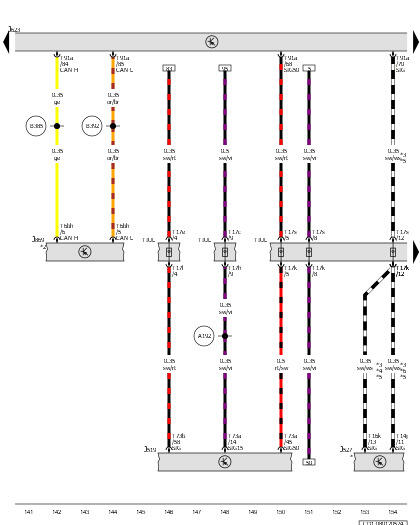

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module, Structure-Borne Sound Control Module
J519
Vehicle Electrical System Control Module
J527
Steering Column Electronics Control Module
J623
Engine/Motor Control Module
J869
Structure-Borne Sound Control Module
T6bh
6-Pin Connector, Black
T14j
14-Pin Connector, Black
T16k
16-Pin Connector, Black
T17c
17-Pin Connector, Black
T17e
17-Pin Connector, Green
T17h
17-Pin Connector, Black
T17k
17-Pin Connector, Blue
T17l
17-Pin Connector, Green
T17s
17-Pin Connector, Blue
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
T91a
91-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
A192
Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B385
Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)
B392
Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)
*
Refer to Applicable Steering Column Electronics Wiring Diagram
*2
Refer to Applicable Wiring Diagram
*3
For Vehicles with Cruise Control System
*4
For Vehicles Without Heated Steering Wheel
*5
Through November 2024
*6
For Vehicles with Heated Steering Wheel
