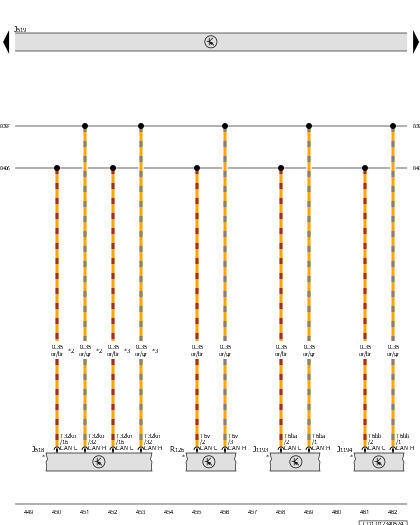

Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Telephone BASEPLATE

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J518

Access/Start Authorization Control Module

J519

Vehicle Electrical System Control Module

J1193

Burglary Protection Control Module 3

J1194

Burglary Protection Control Module 4

R126

Telephone Baseplate

T6ba

6-Pin Connector, Black

T6bb

6-Pin Connector, Black

T6v

6-Pin Connector, Brown

T32kn

32-Pin Connector, Gray

T32ko

32-Pin Connector, Gray

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

*

Refer to the Applicable Cell Phone System Wiring Diagram

*2

For LHD Vehicles

*3

For RHD Vehicles
