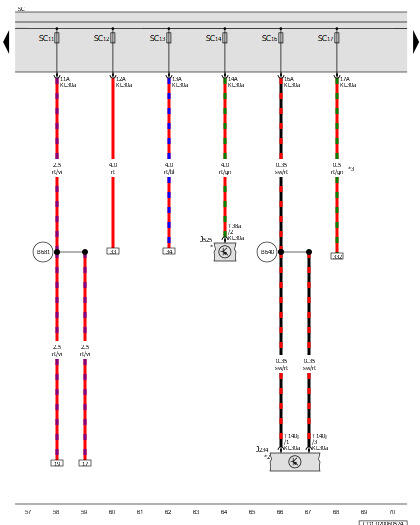

Airbag Control Module, Digital Sound System Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J525

Digital Sound System Control Module

SC

Fuse Panel C

SC11

Fuse 11 (On Fuse Panel C)

SC12

Fuse 12 (On Fuse Panel C)

SC13

Fuse 13 (On Fuse Panel C)

SC14

Fuse 14 (On Fuse Panel C)

SC16

Fuse 16 (On Fuse Panel C)

SC17

Fuse 17 (On Fuse Panel C)

T38a

38-Pin Connector, Black

T140j

140-Pin Connector, Yellow

B640

Connection 54 (in Interior Wiring Harness) 3

B681

Positive Connection 7 (30) (in Interior Wiring Harness)

*

Refer to Applicable Sound System Wiring Diagram

*2

Refer to Applicable Airbag Wiring Diagram

*3

For Vehicles with Reducing Agent Metering System
