Bracket For Vehicle Electrical System Control Module J519, Removing And Installing, LHD: Removing

-- Disconnect the Battery -A-. Refer to Battery, Disconnecting and Connecting .

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Disengage the Fuse Panel C -SC- and push it to the side. Refer to Fuse Panel C SC, Removing and Installing, LHD (With High-Voltage System) , OR Fuse Panel C SC, Removing and Installing, LHD (Without High-Voltage System)  .

-- Disconnect the connector for the Vehicle Electrical System Control Module -J519-. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519, REMOVING AND INSTALLING, LHD  .

-- Disconnect the connector for the Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-.

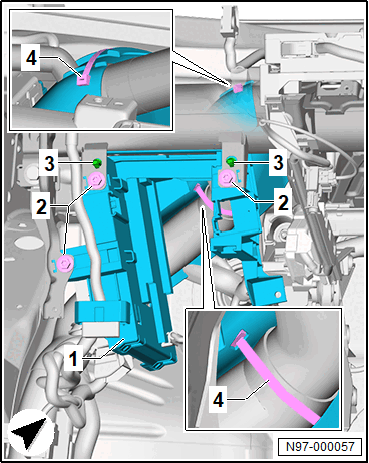

-- Release the diagnostic connector from the bracket -1- and pivot it outward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2-.

-- Push the bracket -1- far enough forward from the crossmember until the alignment pins -3- are disengaged.

-- Cut through the cable tie -arrows-.

-- Free up the wire to the mount.

-- Remove the bracket -1-.
