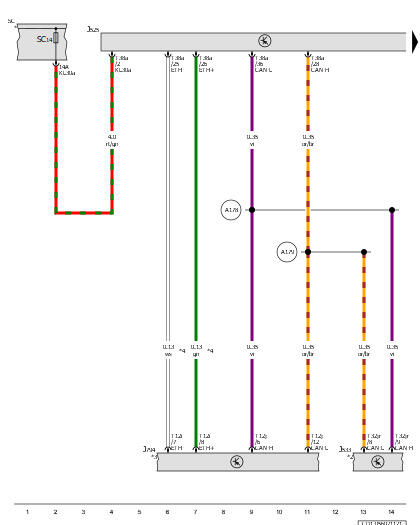

Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Fuse Panel C
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
SC
Fuse Panel C
SC14
Fuse 14 (On Fuse Panel C)
T12i
12-Pin Connector, Green
T12j
12-Pin Connector, Gray
T32jr
32-Pin Connector, Black
T38a
38-Pin Connector, Black
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
*3
Refer to the Applicable Multimedia System Wiring Diagram
*4
The Color of the Wires Depends on Vehicle Equipment
