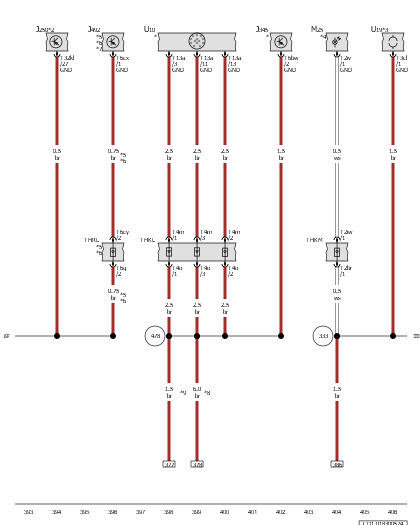

Electronic Damping Control Module, Towing Recognition Control Module, All-Wheel Drive Control Module, High-Mounted Brake Lamp Bulb, Trailer Socket, 12 V Socket 3
J250
Electronic Damping Control Module
J345
Towing Recognition Control Module
J492
All-Wheel Drive Control Module
M25
High-Mounted Brake Lamp Bulb
T2br
2-Pin Connector, Black
T2iv
2-Pin Connector, Black
T2iw
2-Pin Connector, Black
T3cl
3-Pin Connector, Naturally Cloudy
T4m
4-Pin Connector, Black
T4o
4-Pin Connector, Black
T6bw
6-Pin Connector, Black
T6cx
6-Pin Connector, Black
T6cy
6-Pin Connector, Black
T6q
6-Pin Connector, Black
T13a
13-Pin Connector, Black
T32kl
32-Pin Connector, Black
THKL
Coupling Point on Rear Lid, Left
THKM
Coupling Point on Rear Lid, Center
THRL
Coupling Point in Luggage Compartment, Left
U10
Trailer Socket
U19
12 V Socket 3
197
Ground Connection 4 (in Rear Wiring Harness)
333
Ground Connection 5 (in Rear Wiring Harness)
478
Ground Connection 3 (in Rear Lid Wiring Harness)
*
Refer to the Wiring Diagram for Trailer Towing
*2
Refer to the Applicable Adaptive Chassis DCC Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Sockets
*4
Refer to Applicable Tail Lamp Wiring Diagram
*5
For AWD Vehicles
*6
From July 2020
*7
Refer to Applicable AWD Wiring Diagram
*8
For Vehicles with Trailer Socket
*9
For Vehicles with Trailer Setup
