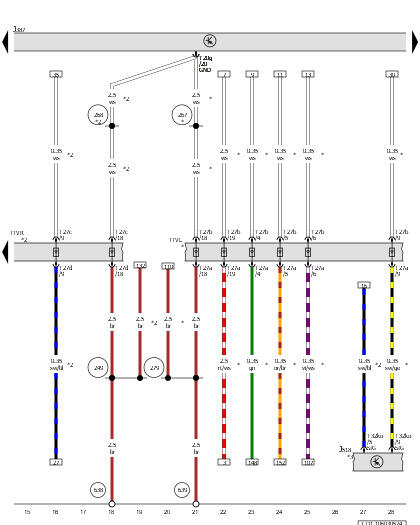

Front Passenger Door Control Module, Access/Start Authorization Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J387

Front Passenger Door Control Module

J518

Access/Start Authorization Control Module

T20g

20-Pin Connector, White

T27a

27-Pin Connector, Black

T27b

27-Pin Connector, Black

T27c

27-Pin Connector, Black

T27d

27-Pin Connector, Black

T32ko

32-Pin Connector, Gray

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

249

Ground Connection 2 (in Interior Wiring Harness)

267

Ground Connection 2 (in Driver Door Wiring Harness)

268

Ground Connection 2 (in Front Passenger Door Wiring Harness)

279

Ground Connection 5 (in Interior Wiring Harness)

638

Ground Connection on Right A-Pillar

639

Ground Connection on Left A-Pillar

*

For RHD Vehicles

*2

For LHD Vehicles

*3

Refer to the Applicable Access/Start Authorization System Wiring Diagram
