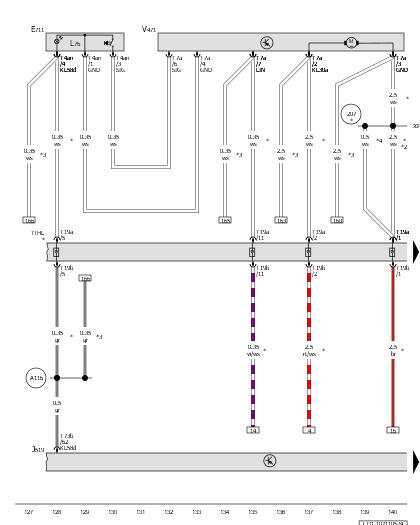

Driver Side Rear Power Window Button, Vehicle Electrical System Control Module, Driver Side Rear Window Regulator Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E711

Driver Side Rear Power Window Button

J519

Vehicle Electrical System Control Module

L76

Push Button Illumination Bulb

T4an

4-Pin Connector, Black

T7a

7-Pin Connector, Black

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T73b

73-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

V471

Driver Side Rear Window Regulator Motor

207

Ground Connection (in Left Rear Door Wiring Harness)

A116

Connection 58d (in Instrument Panel Wiring Harness) 2

*

For LHD Vehicles

*2

For Vehicles with Safe Function

*3

For RHD Vehicles

*4

For Vehicles Without Safe Function
