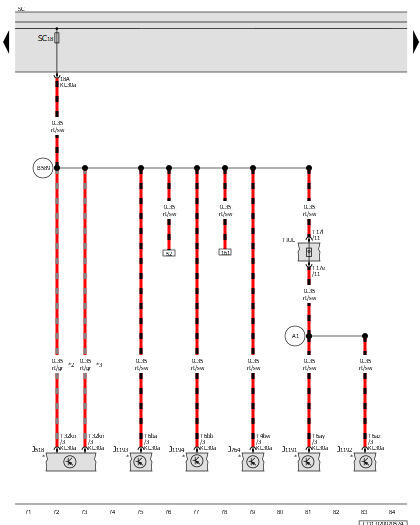

Access/Start Authorization Control Module, Electronic Steering Column Lock Control Module, Burglary Protection Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Fuse Panel C
J518
Access/Start Authorization Control Module
J764
Electronic Steering Column Lock Control Module
J1191
Burglary Protection Control Module
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
J1194
Burglary Protection Control Module 4
SC
Fuse Panel C
SC18
Fuse 18 (On Fuse Panel C)
T4bw
4-Pin Connector, Black
T6ay
6-Pin Connector, Black
T6az
6-Pin Connector, Black
T6ba
6-Pin Connector, Black
T6bb
6-Pin Connector, Black
T17e
17-Pin Connector, Green
T17l
17-Pin Connector, Green
T32kn
32-Pin Connector, Gray
T32ko
32-Pin Connector, Gray
TIUL
Coupling Point in Interior, Bottom Left
A1
Positive Connection 30a (in Instrument Panel Wiring Harness)
B589
Connection 49A (in Interior Wiring Harness)
*
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*2
For LHD Vehicles
*3
For RHD Vehicles
