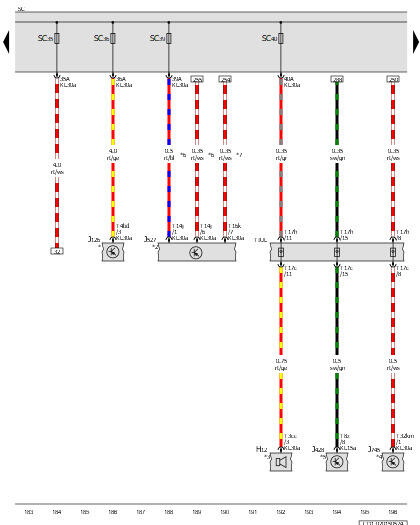

Alarm Horn, Fresh Air Blower Control Module, Control Module For Adaptive Cruise Control, Steering Column Electronics Control Module, Cornering Lamp And Headlamp Range Control Module, Fuse Panel C
H12
Alarm Horn
J126
Fresh Air Blower Control Module
J428
Control Module for Adaptive Cruise Control
J527
Steering Column Electronics Control Module
J745
Cornering Lamp and Headlamp Range Control Module
SC
Fuse Panel C
SC35
Fuse 35 (On Fuse Panel C)
SC36
Fuse 36 (On Fuse Panel C)
SC39
Fuse 39 (On Fuse Panel C)
SC40
Fuse 40 (On Fuse Panel C)
T3cc
3-Pin Connector, Black
T4bd
4-Pin Connector, Black
T8z
8-Pin Connector, Black
T14j
14-Pin Connector, Black
T16k
16-Pin Connector, Black
T17c
17-Pin Connector, Black
T17h
17-Pin Connector, Black
T32km
32-Pin Connector, Gray
TIUL
Coupling Point in Interior, Bottom Left
*
Refer to Applicable A/C System Wiring Diagram
*2
Refer to Applicable Steering Column Electronics Wiring Diagram
*3
Refer to the Applicable Convenience System and Anti-Theft Alarm System Wiring Diagram
*4
Refer to Applicable Wiring Diagram for Headlamps
*5
Refer to Applicable Wiring Diagram for Adaptive Cruise Control
*6
For Vehicles with Heated Steering Wheel
*7
For Vehicles Without Heated Steering Wheel
