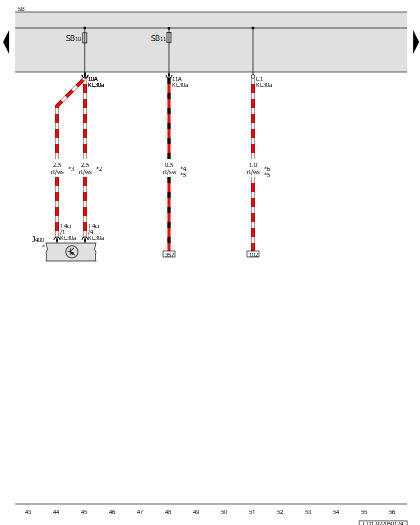

Wiper Motor Control Module, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J400

Wiper Motor Control Module

SB

Fuse Panel B

SB10

Fuse 10 (On Fuse Panel B)

SB11

Fuse 11 (On Fuse Panel B)

T4ci

4-Pin Connector, Black

*

Refer to Applicable Wiring Diagram

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

For Vehicles with Hybrid Drive

*5

From July 2020

*6

For Vehicles with Front Differential Lock
