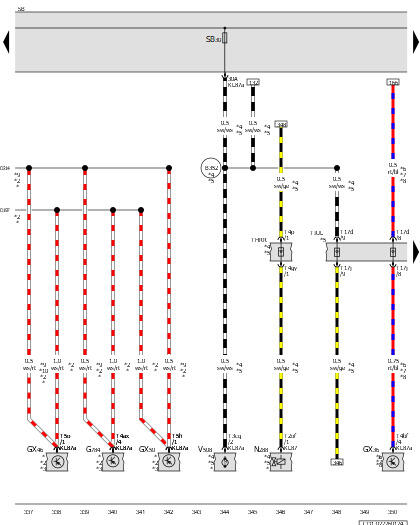

Fuel Tank Leak Detection Module, NOX Sensor Control Module 2, NOX Sensor Control Module 3, Particulate Sensor, Tank Switch-Off Valve, Fuse Panel B, Coolant Pump In Front Of Electric Drive Power And Control Electronics
GX36
Fuel Tank Leak Detection Module
GX46
NOx Sensor Control Module 2
GX50
NOx Sensor Control Module 3
G784
Particulate Sensor
N288
Tank Switch-Off Valve
SB
Fuse Panel B
SB30
Fuse 30 (On Fuse Panel B)
T2of
2-Pin Connector, Gray
T3cq
3-Pin Connector, Black
T4ax
4-Pin Connector, Black
T4bf
4-Pin Connector, Black
T4gy
4-Pin Connector, Black
T4p
4-Pin Connector, Black
T5h
5-Pin Connector, Black
T5o
5-Pin Connector, Black
T17d
17-Pin Connector, Red
T17j
17-Pin Connector, Red
THRR
Coupling Point in Luggage Compartment, Right
TIUL
Coupling Point in Interior, Bottom Left
V508
Coolant Pump in Front of Electric Drive Power and Control Electronics
B352
Positive Connection 3 (87a) (in Main Wiring Harness)
D197
Connection 5 (87A) (in Engine/Motor Compartment Wiring Harness)
D214
Connection 8 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
For Vehicles with Diesel Engine
*3
Pre-Wired Component
*4
For Vehicles with Hybrid Drive
*5
From July 2020
*6
For USA Only
*7
From July 2021
*8
For Vehicles with 2.0L Gasoline Engine
*9
From November 2022
*10
Depending on Equipment
