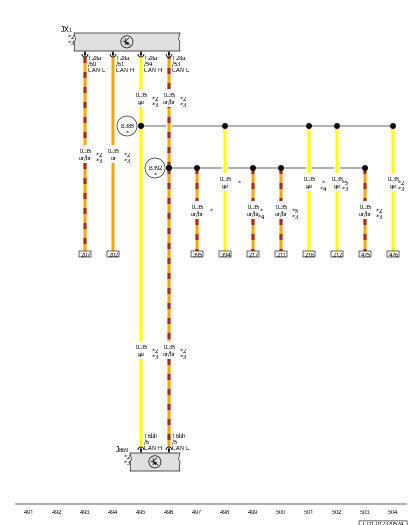

Electric Drive Power And Control Electronics, Structure-Borne Sound Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

JX1

Electric Drive Power and Control Electronics

J869

Structure-Borne Sound Control Module

T6bh

6-Pin Connector, Black

T28a

28-Pin Connector, Black

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

*

For Vehicles with 48 V Hybrid System

*2

For Vehicles with Hybrid Drive

*3

From July 2020

*4

Refer to Applicable Engine Wiring Diagram

*5

Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)
