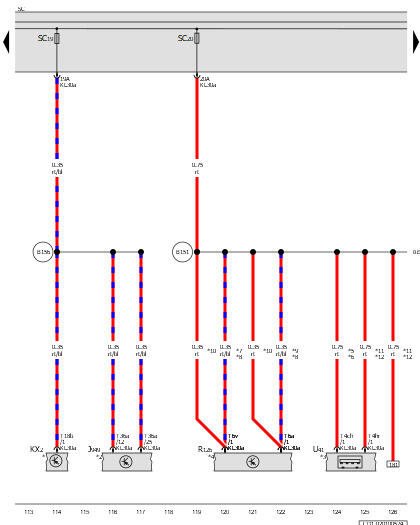

Control Module For Emergency Call Module And Communication Unit, Instrument Cluster, Telephone BASEPLATE, Fuse Panel C, USB Connection 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J949

Control Module for Emergency Call Module and Communication Unit

KX2

Instrument Cluster

R126

Telephone Baseplate

SC

Fuse Panel C

SC19

Fuse 19 (On Fuse Panel C)

SC20

Fuse 20 (On Fuse Panel C)

T4ch

4-Pin Connector, Red

T4hr

4-Pin Connector, Blue

T6a

6-Pin Connector, Black

T6v

6-Pin Connector, Brown

T18b

18-Pin Connector, Black

T36a

36-Pin Connector, Black

U41

USB Connection 1

B151

Positive Connection 3 (30a) (in Interior Wiring Harness)

B156

Positive Connection 30a (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Instrument Cluster

*2

Refer to Applicable Emergency Call Module Wiring Diagram

*3

Refer to the Applicable Multimedia System Wiring Diagram

*4

Refer to the Applicable Cell Phone System Wiring Diagram

*5

Through July 2022

*6

Not for Vehicles with USB Connection for Increased Charging Capacity

*7

For Vehicles with Near Field Communication

*8

Through July 2020

*9

For Vehicles Without Near Field Communication

*10

From July 2020

*11

From July 2022

*12

For Vehicles with USB Connection for Increased Charging Capacity
