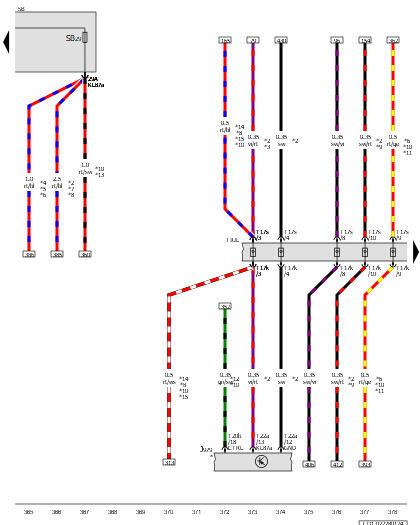

Heating And Air Conditioning Control Module, Fuse Panel B
J979
Heating and Air Conditioning Control Module
SB
Fuse Panel B
SB29
Fuse 29 (On Fuse Panel B)
T17k
17-Pin Connector, Blue
T17s
17-Pin Connector, Blue
T20b
20-Pin Connector, Black
T22a
22-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
*
Refer to Applicable A/C System Wiring Diagram
*2
For Vehicles with Diesel Engine
*3
For Vehicles with Auxiliary Heater
*4
For Vehicles with Gasoline Engine
*5
For Vehicles Without All-Wheel Drive
*6
For Natural Gas Vehicles
*7
For AWD Vehicles
*8
For Vehicles with 2.0L Gasoline Engine
*9
Refer to Applicable Reducing Agent Metering System Wiring Diagram
*10
From July 2020
*11
Through March 2024
*12
For Vehicles with Hybrid Drive
*13
For Vehicles with a 1.6L Engine
*14
Depending on Equipment
*15
For Vehicles with Top Sport Equipment
