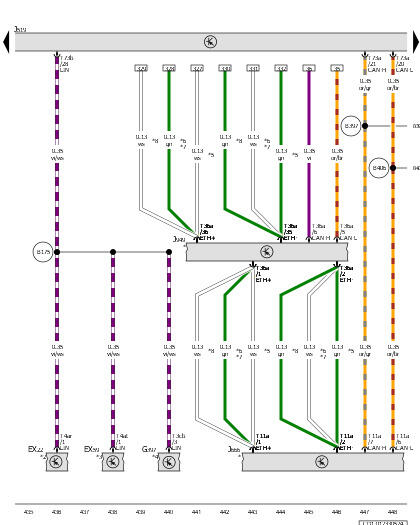

Center Instrument Panel Switch Module, Illumination Control Head, Rain/Light Recognition Sensor, Vehicle Electrical System Control Module, Internet Access Control Module, Control Module For Emergency Call Module And Communication Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX22

Center Instrument Panel Switch Module

EX59

Illumination Control Head

G397

Rain/Light Recognition Sensor

J519

Vehicle Electrical System Control Module

J666

Internet Access Control Module

J949

Control Module for Emergency Call Module and Communication Unit

T3cb

3-Pin Connector, Black

T4ar

4-Pin Connector, Red

T4at

4-Pin Connector, Red

T11a

11-Pin Connector, Black

T36a

36-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

B175

Central Locking Connection (in Interior Wiring Harness)

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Emergency Call Module Wiring Diagram

*2

Refer to Applicable Wiring Diagram for the Self-Leveling System

*3

Refer to Applicable Light Switch Wiring Diagram

*4

Refer to Applicable A/C System Wiring Diagram

*5

Through July 2020

*6

From July 2020

*7

Through November 2020

*8

From November 2020
