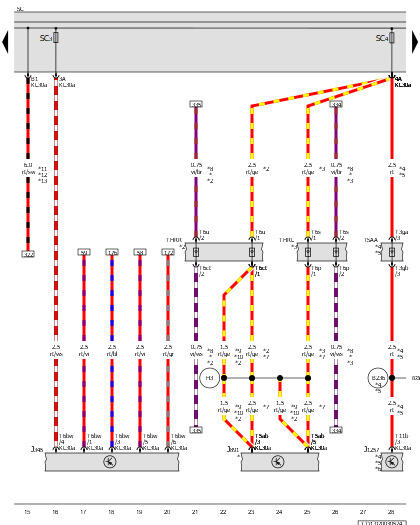

Towing Recognition Control Module, Reducing Agent Heater Control Module, Control Module 1 For Torque Vectoring, Fuse Panel C
J345
Towing Recognition Control Module
J891
Reducing Agent Heater Control Module
J1257
Control Module 1 for Torque Vectoring
SC
Fuse Panel C
SC3
Fuse 3 (On Fuse Panel C)
SC4
Fuse 4 (On Fuse Panel C)
T3ga
3-Pin Connector, Black
T3gb
3-Pin Connector, Black
T5ab
5-Pin Connector, Naturally Cloudy
T6bw
6-Pin Connector, Black
T6ct
6-Pin Connector, Black
T6p
6-Pin Connector, Black
T6s
6-Pin Connector, Black
T6u
6-Pin Connector, Black
T11b
11-Pin Connector, Black
THRL
Coupling Point in Luggage Compartment, Left
THRR
Coupling Point in Luggage Compartment, Right
TSAA
All-Wheel Drive Coupling Point
B236
Positive Connection 6 (30a) (in Interior Wiring Harness)
H3
Connection 1 (in Reducing Agent Tank Wiring Harness)
*
Refer to Applicable Reducing Agent Metering System Wiring Diagram
*2
For Vehicles with Four-Link Rear Axle
*3
For Vehicles with Standard Rear Axle
*4
For Vehicles with Top Sport Equipment
*5
From November 2020
*6
Refer to Applicable AWD Wiring Diagram
*7
For Vehicles Without All-Wheel Drive
*8
For Vehicles with Reducing Agent Metering System
*9
From July 2020
*10
For AWD Vehicles
*11
Refer to Applicable Special Purpose Vehicle Wiring Diagram
*12
Only Applies to Special Purpose Vehicles
*13
From February 2021
