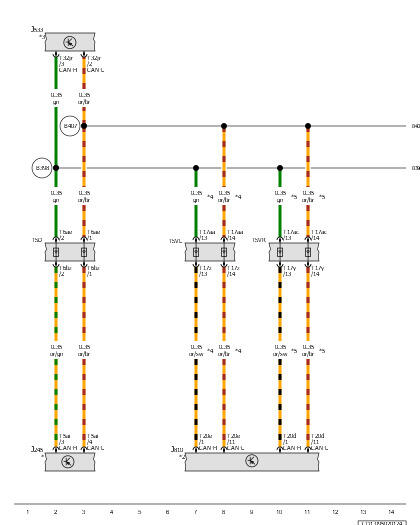

Sunroof Control Module, Data Bus On Board Diagnostic Interface, Driver Seat Adjustment Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J245

Sunroof Control Module

J533

Data Bus on Board Diagnostic Interface

J810

Driver Seat Adjustment Control Module

T5ai

5-Pin Connector, Black

T6ae

6-Pin Connector, Black

T6bz

6-Pin Connector, Black

T17aa

17-Pin Connector, Red

T17ac

17-Pin Connector, Red

T17y

17-Pin Connector, Red

T17z

17-Pin Connector, Red

T20d

20-Pin Connector, Black

T20e

20-Pin Connector, Black

T32jr

32-Pin Connector, Black

TSD

Sunroof Coupling Point

TSVL

Left Front Seat Coupling Station

TSVR

Right Front Seat Coupling Station

B398

Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)

*

Refer to the Applicable Sunroof Wiring Diagram

*2

Refer to Applicable Seat Adjustment Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface

*4

For LHD Vehicles

*5

For RHD Vehicles
