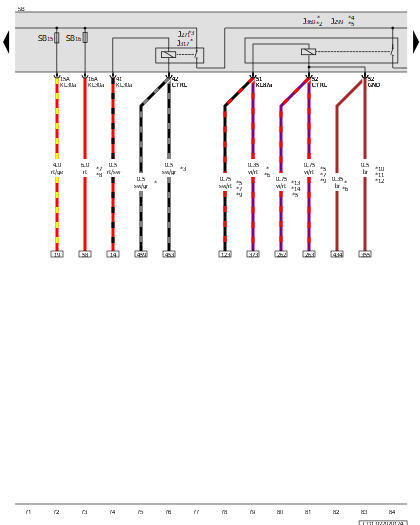

Fuse Panel B (MOTRONIC Engine Control Module)
J271
Motronic Engine Control Module Power Supply Relay
J299
Secondary Air Injection Pump Relay
J317
Terminal 30 Power Supply Relay
J360
High Heat Output Relay
SB
Fuse Panel B
SB15
Fuse 15 (On Fuse Panel B)
SB16
Fuse 16 (On Fuse Panel B)
*
For Vehicles with Diesel Engine
*2
Refer to Applicable Auxiliary Heater Wiring Diagram
*3
For Vehicles with Gasoline Engine
*4
Refer to Applicable Engine Wiring Diagram
*5
For Vehicles with 2.0L Gasoline Engine
*6
For Vehicles with Auxiliary Heater
*7
From July 2020
*8
For Vehicles with Automatic Transmission (DSG)
*9
For Vehicles with Top Sport Equipment
*10
From November 2020
*11
For Vehicles with A 1.0L Gasoline Engine
*12
For Vehicles with Auxiliary Heater
*13
For USA Only
*14
From July 2021
