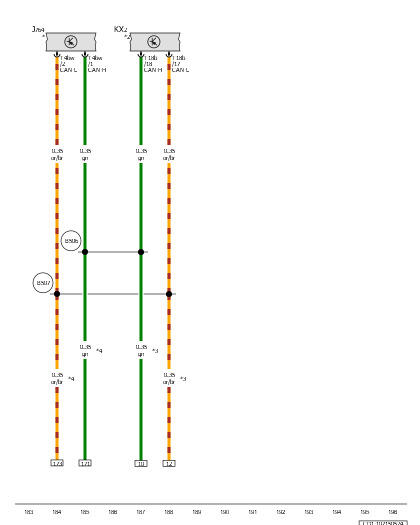

Electronic Steering Column Lock Control Module, Instrument Cluster
J764
Electronic Steering Column Lock Control Module
KX2
Instrument Cluster
T4bw
4-Pin Connector, Black
T18b
18-Pin Connector, Black
B506
Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507
Comfort CAN Bus Low Connection (in Interior Wiring Harness)
*
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Instrument Cluster
*3
For LHD Vehicles
*4
For RHD Vehicles
