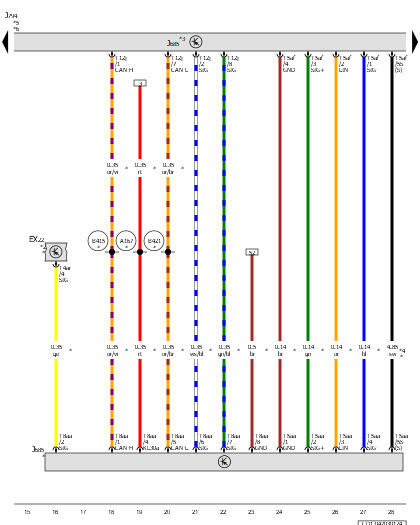

Center Instrument Panel Switch Module, Front Information Display Control Head, Information Electronics Control Module 1
EX22
Center Instrument Panel Switch Module
J685
Front Information Display Control Head
J794
Information Electronics Control Module 1
T4ar
4-Pin Connector, Red
T5aa
5-Pin Connector, Blue
T5af
5-Pin Connector, Purple
T8aa
8-Pin Connector, Black
T12j
12-Pin Connector, Gray
A167
Positive Connection 3 (30a) (in Instrument Panel Wiring Harness)
B415
Infotainment CAN Bus High Connection 1 (in Main Wiring Harness)
B421
Infotainment CAN Bus Low Connection 1 (in Main Wiring Harness)
*
For Vehicles with Navigation System
*2
Refer to Applicable Wiring Diagram
*3
For Vehicles Without a Navigation System
*4
The Color of the Wires Depends on Vehicle Equipment
*5
Refer to Applicable Sound System Wiring Diagram
*6
Refer to the Applicable USB Charging Socket Wiring Diagram
